79GHz Millimeter-Wave Vehicle Detection Radar Sensor – Anti-Collision Vehicle Safety System for Automatic Boom Barrier Gates
Classification :
PRODUCT DETAILS
Prevent vehicle strikes and enhance parking lot safety with our 79GHz millimeter-wave vehicle detection radar sensor. Designed for automatic boom barrier gates, it combines high-frequency microwave detection, rapid anti-collision response, and weather-resistant performance, delivering precise vehicle recognition and reliable property protection worldwide.
Specifications
| Manufacturing Origin | Shandong, China |
| Official Brand Name | Baroxon |
| Product Name | Baroxon Ba-RDR79 Boom Barrier Radar Singapore |
| Functional Description | Vehicle and Pedestrian Detection Sensor for Parking Systems |
| Output Signal | Single Channel (Relay/RS485) |
| Application Area | All types of automatic gates (straight, fence, folding, advertising) |
| Operating Frequency | 77~81GHz |
| Chassis Material | High-Grade ABS+PC |
| Connection Interface | RS485 / Wireless Bluetooth Control |

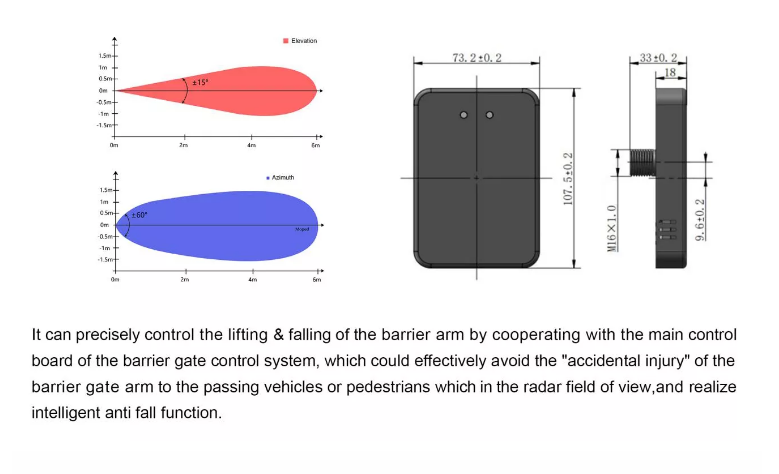

| FOV (Field of View) | Azimuth: ±60°, Elevation: ±15° |
| Detection Range | Up to 6 m |
| Manufacturing Capacity | 2000pcs per day |
| Sales Unit | Single item (Project Wholesale) |
| Package Size | 17X10X10 cm |
| Gross Weight | 1.000 kg |
| Delivery Lead Time | 3-7 days for ready stock in Singapore Hub |
| Core Technology | 79GHz Millimeter Wave Radar Sensor, FMCW MIMO |
| Working Voltage | 10-24V |
| Temperature Range (℃) | -40~85 |
| Power Consumption (W) | <2.5 |
| Protection Index | IP66 (Weatherproof/Reliable for tropical climate operations) |
| Physical Dimensions (mm) | 107.5*73.2*18 |
| Detection Distance (Front) | Default 3 m (Configurable up to 6 m) |
| Detection Distance (Side) | Default ±0.5m (Configurable up to ±1.5m) |
| Debugging Method | Serial Port / Mobile APP Bluetooth Wireless |

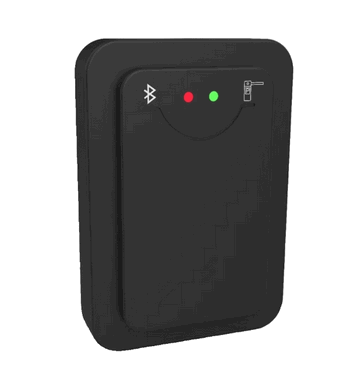

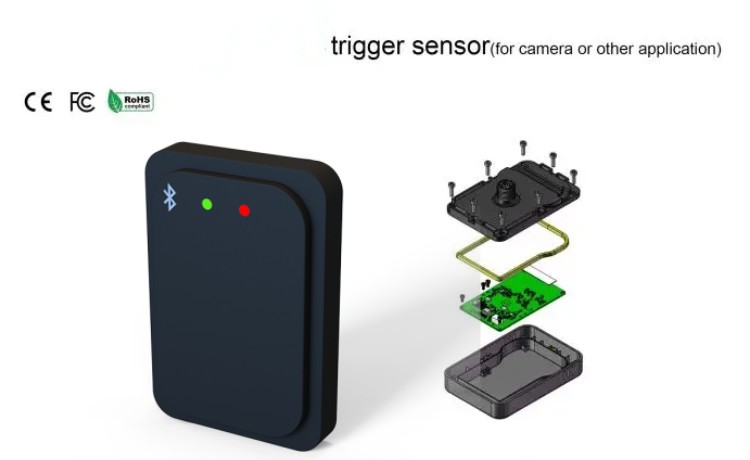

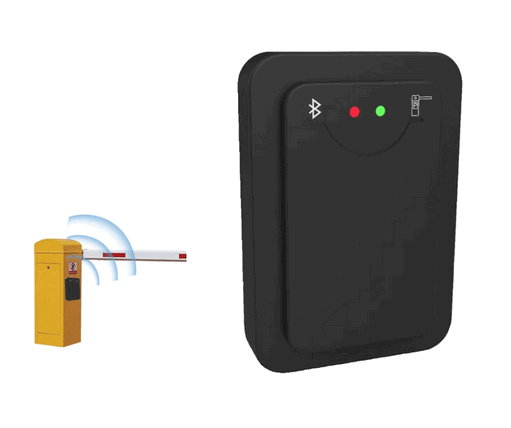

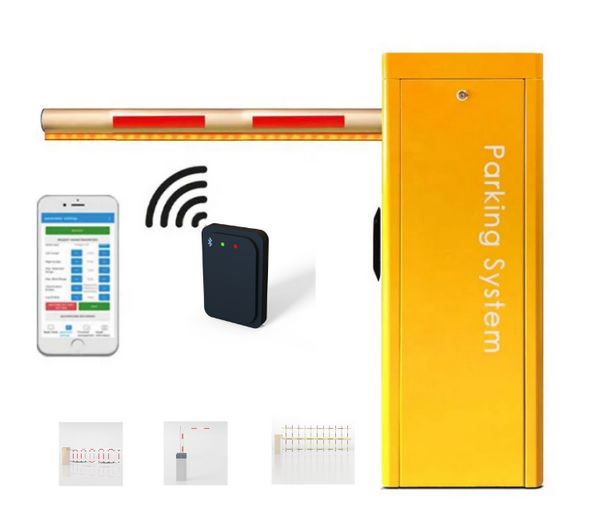

Product Images
Key Advantages
Millimeter-Wave Precision
The 79 GHz radar detects vehicles and obstacles with high accuracy and angular resolution at ranges up to 6 m.

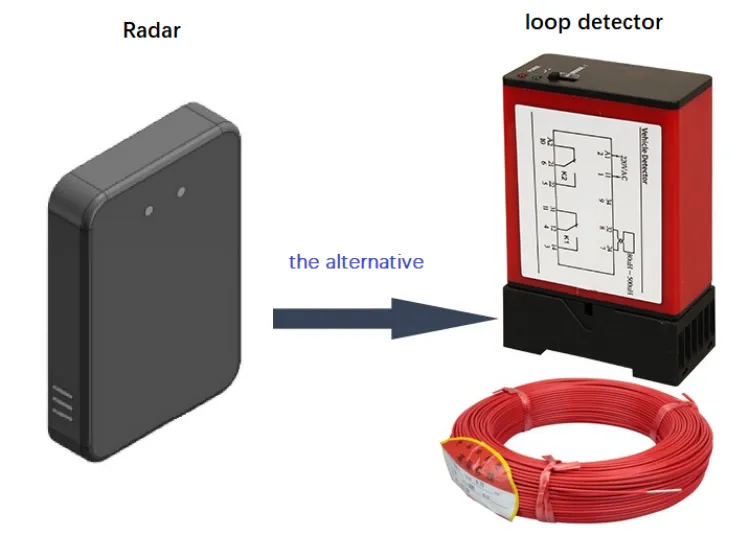

Induction Loop Replacement
No road cutting required: the sensor mounts above the lane and contactlessly detects vehicles, pedestrians and obstacles.

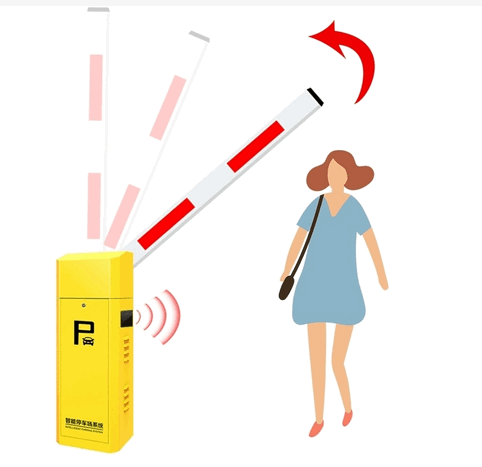

Boom Impact Protection
Real-time monitoring of the area under the arm prevents the barrier from lowering onto a vehicle or pedestrian.
All-Weather Sealed Housing
The sealed enclosure with IP65 protection (weather-resistant for the Singapore climate) works in rain, snow, fog, dust and temperature changes.
Wireless Configuration
Bluetooth app setup: detection zone, sensitivity and delay are configured without opening the housing.
Frequently Asked Questions (FAQs)
At what distance does the radar detect vehicles?
The 79 GHz millimeter-wave radar reliably detects vehicles at ranges up to 6 m with high angular resolution, fully covering the approach zone to the barrier.
Does the sensor replace induction loops?
Yes. The radar replaces loop detectors and infrared photocells: it detects vehicles, pedestrians and obstacles without cutting the road surface, simplifying installation and maintenance.

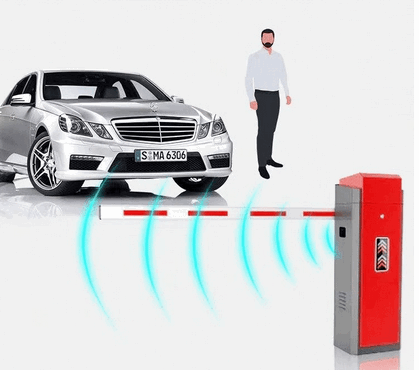

How does boom impact protection work?
The sensor monitors the area under the arm in real time: if a vehicle or pedestrian appears, the barrier stops lowering and raises the arm to prevent a collision.
Does the sensor work in rain, snow and frost?
Yes. The housing is rated IP65 (weather-resistant for the Singapore climate), and the millimeter-wave radar is unaffected by precipitation, fog, dust and temperature changes.
How is the sensor configured?
Configuration is done over Bluetooth from a smartphone app: detection zone, sensitivity and trigger delay are set without opening the housing.
Which barriers and gates is the sensor compatible with?
The sensor has standard relay outputs and works with BAROXON barriers as well as most universal barrier and gate operators.
