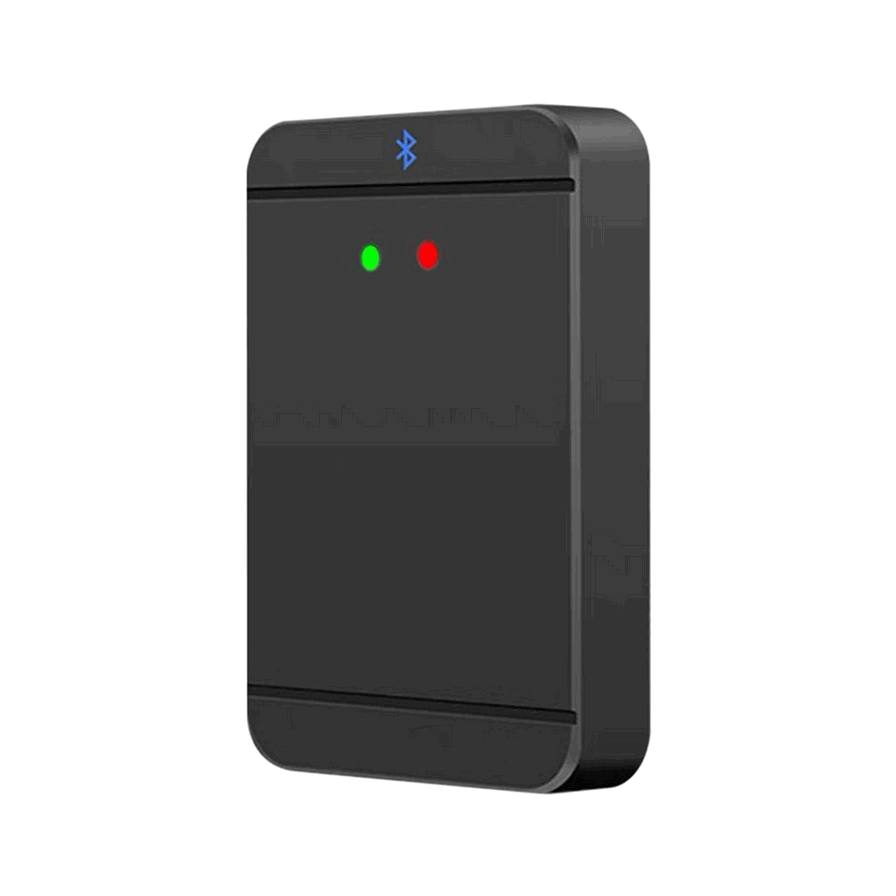

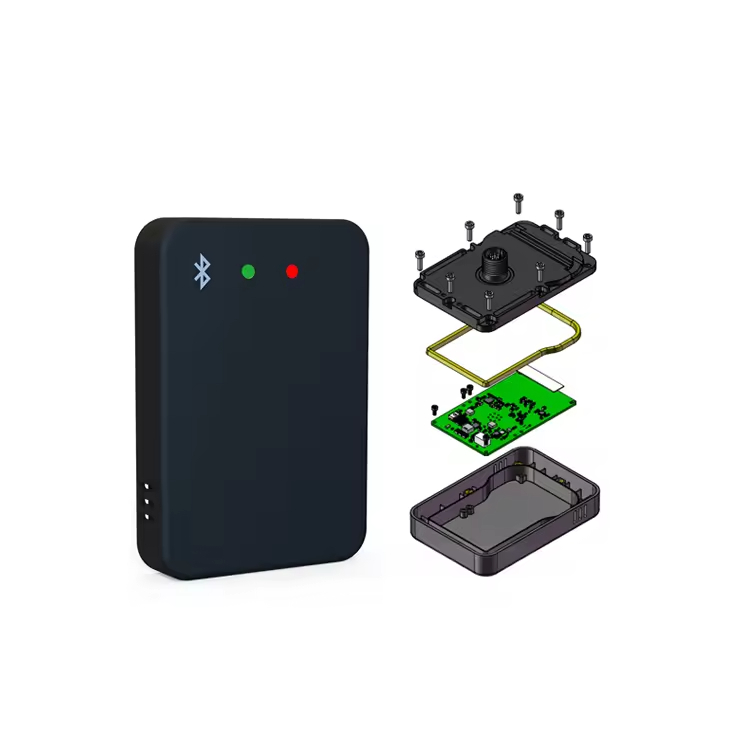

79GHz Smart Millimeter-Wave Radar Vehicle Loop Detector with Smartphone Configuration – High-Precision Vehicle Detection System for Automatic Boom Barriers
Classification :
PRODUCT DETAILS
Optimize vehicle detection and enhance automatic boom barrier safety with our 79GHz smart millimeter-wave radar vehicle loop detector. Featuring intuitive smartphone configuration, it combines high-precision microwave detection, rapid anti-smash response, and rugged weather-resistant performance, delivering reliable traffic management and vehicle protection worldwide.
Specifications
| Visibility Feature | Engineer-Grade High Visibility |
| Material | Industrial PVC |
| Brand Name | Baroxon |
| Model Number | Ba-GPA-LD102 |
| Product Name | Anti-Collision Radar Sensor |
| Application | Automatic Parking Barrier Gate |
| Detection Capability | Human & Vehicle Separation |
| Response Time | 75ms~85ms |
| Vertical Distance | 1-6m (Adjustable) |
| Protection Level | IP66 Waterproof |
| Power Range | 9V~24VDC (Default 12V) |
| Debug Mode | Bluetooth via Applet |
| Emission Frequency | 79GHz |
| Operating Temp | -40℃~+80℃ |
| Modulation Mode | FMCW |
| Protection | IP66 |
| Microwave Aerial | 2T3R / 2T4R |
| Dimensions | 108mm × 70mm × 19mm |
| Lateral Width | -1m~+1m (Adjustable) |
| Weight | 160g |
| Sales Unit: Single Item | Package Size: 19X17X9 cm |
| Gross Weight: 1.500 kg | Delivery Time: 2-5 days (Standard Singapore Hub Stock) |
Product Images
Key Advantages
Millimeter-Wave Precision
The 79 GHz radar detects vehicles and obstacles with high accuracy and angular resolution at ranges up to 6 m.
Induction Loop Replacement
No road cutting required: the sensor mounts above the lane and contactlessly detects vehicles, pedestrians and obstacles.
Boom Impact Protection
Real-time monitoring of the area under the arm prevents the barrier from lowering onto a vehicle or pedestrian.
All-Weather Sealed Housing
The sealed enclosure with IP65 protection (weather-resistant for the Singapore climate) works in rain, snow, fog, dust and temperature changes.
Wireless Configuration
Bluetooth app setup: detection zone, sensitivity and delay are configured without opening the housing.
Frequently Asked Questions (FAQs)
At what distance does the radar detect vehicles?
The 79 GHz millimeter-wave radar reliably detects vehicles at ranges up to 6 m with high angular resolution, fully covering the approach zone to the barrier.
Does the sensor replace induction loops?
Yes. The radar replaces loop detectors and infrared photocells: it detects vehicles, pedestrians and obstacles without cutting the road surface, simplifying installation and maintenance.
How does boom impact protection work?
The sensor monitors the area under the arm in real time: if a vehicle or pedestrian appears, the barrier stops lowering and raises the arm to prevent a collision.
Does the sensor work in rain, snow and frost?
Yes. The housing is rated IP65 (weather-resistant for the Singapore climate), and the millimeter-wave radar is unaffected by precipitation, fog, dust and temperature changes.

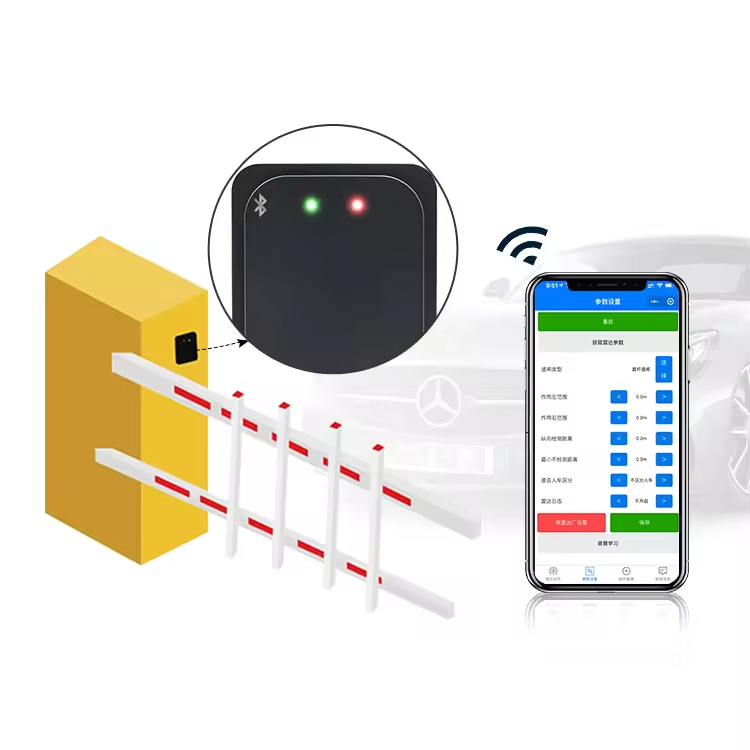

How is the sensor configured?
Configuration is done over Bluetooth from a smartphone app: detection zone, sensitivity and trigger delay are set without opening the housing.
Which barriers and gates is the sensor compatible with?
The sensor has standard relay outputs and works with BAROXON barriers as well as most universal barrier and gate operators.
Videos & Demonstrations
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
