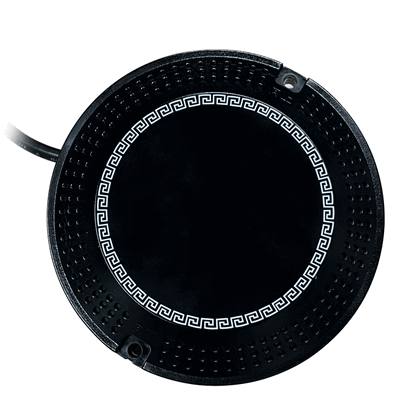

Anti-Drop Collision Radar Sensor for Plastic and Steel Barrier Gates Protection
Classification :
PRODUCT DETAILS
Technical Specifications & Key Attributes
| Material | Plastic | Reflective Grade | Engineer Grade |
| Brand Name | Baroxon | Model Number | Ba-79G-PRO |
| Product Name | Radar Vehicle Detector | Refresh Rate | 13.3Hz |
| Response Time | 75ms | Product Weight | 183g |
| Operating Frequency | 77GHz-81GHz | Detection Distance Range | 0.5m~0.7m |
| Detection Level Range | -1~1m | Debugging Mode | Bluetooth / Serial |
| Packing Size | 112.75mm*111.75mm*47.81mm | Horizontal Beam | 120° |
Product Features & Functional Overview
Tutorial Video: Installing Baroxon Radar Sensor for Indonesian Automatic Barrier Systems
Detailed Technical Parameters
| Parameter Details - Baroxon Ba-79G-PRO | |
|---|---|
| Frequency Range | 77GHz - 81GHz (High Precision) |
| Horizontal Detection Angle | 120° Wide Coverage |
| Vertical Detection Angle | ±15° Adjustable |

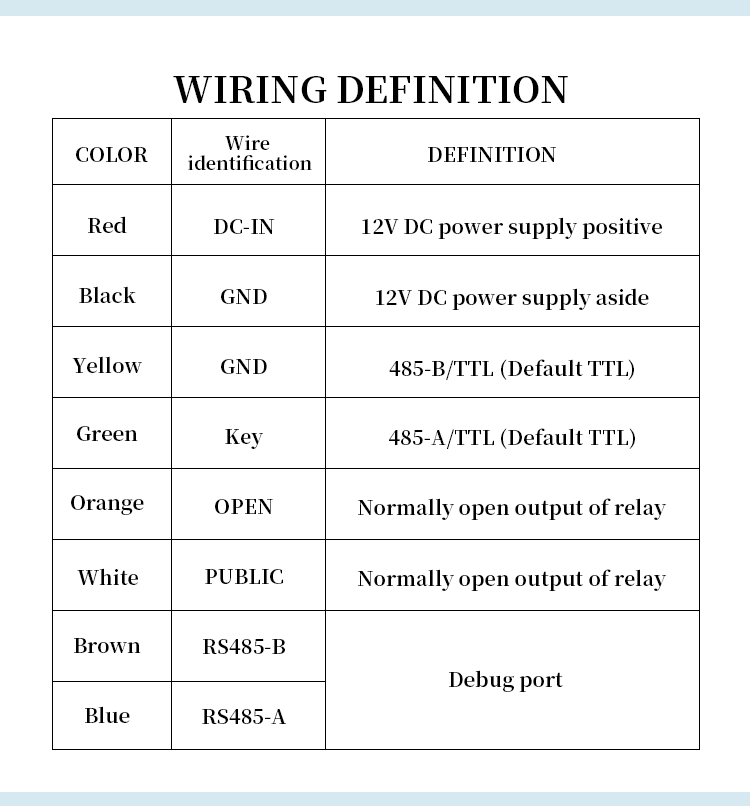

| Communication Interface | Bluetooth, Serial Port, Relay Node |
| Operating Temperature | -40°C to +85°C (Suitable for Indonesian tropical climate) |
| Waterproof Rating | IP67 High Level Protection |
Frequently Asked Questions (FAQ) for Indonesia Market
Q1: Is Baroxon radar easier to install than traditional ground loops in Jakarta projects?
Absolutely. Traditional ground loops require road cutting which is time-consuming and prone to damage from heavy rain. Baroxon radar can be mounted directly on the barrier gate housing, saving installation time and maintenance costs for projects in Jakarta, Surabaya, or Medan.
Q2: Can the detection distance be adjusted for narrow toll booths or parking exits?

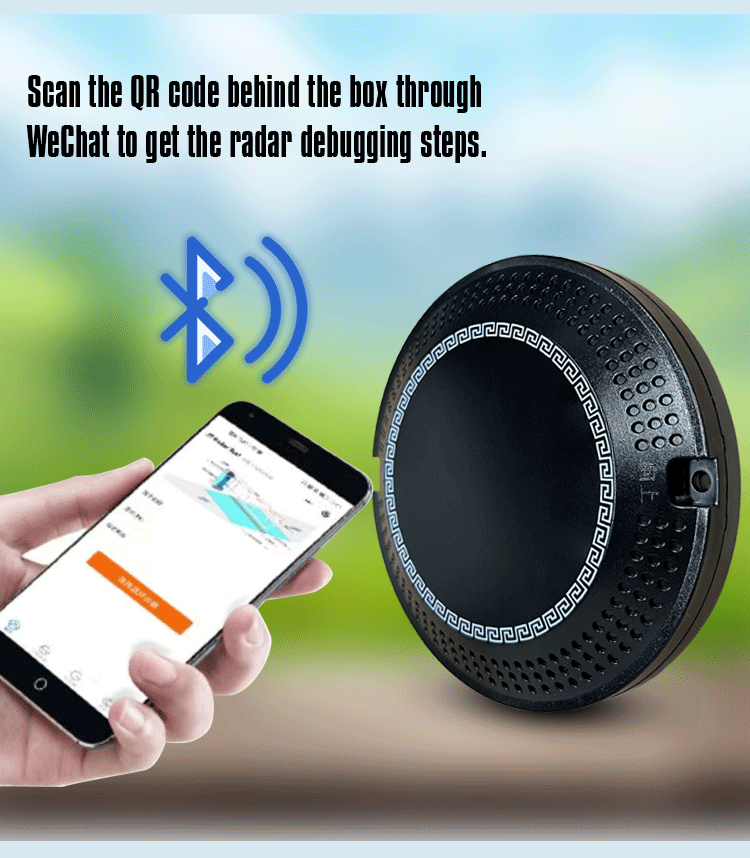

Yes, the Ba-79G-PRO features an adjustable detection distance (0.5m-0.7m standard, configurable via Bluetooth) to prevent false triggering from adjacent lanes or pedestrians, making it ideal for mall parking and residential barrier gates.
Q3: Does the radar support all types of Indonesian barrier arms?
Yes, it works perfectly with 90° Folding Arms, Fence Arms, and straight Boom Gate poles. It provides high-reliability anti-drop protection for vehicles ranging from motorcycles to large trucks.
Packaging and Logistics Information
| Selling Units | Single item per box | Package Dimensions | 12 x 12 x 5 cm |
| Gross Weight | 0.183 kg | Batch Availability | Stock available for Jakarta delivery |
Hot Tags (Indonesia Market)
Palang Parkir Otomatis | Jual Radar Barrier Gate | Sensor Radar Parkir Murah | Vehicle Loop Detector Indonesia | Anti Tabrak Barrier Gate | Akses Kontrol Parkir | 79GHz Millimeter Wave Radar Jakarta
Local Indonesia Industry Keywords
Distributor Palang Parkir Indonesia, Radar Sensor Palang Otomatis, Smart Parking System Hardware, Jasa Pasang Barrier Gate Surabaya, Sensor Parkir RFID, Komponen Palang Parkir, Automatic Boom Gate Sensor, Radar Anti-Drop Kendaraan, Sistem Parkir Berbayar Mandiri, Radar Sensor For Barrier Gate MX-50, Sparepart Palang Parkir Bandung, Teknologi Parkir Pintar, Parking Lot Safety Sensor, Millimeter Wave Radar for Toll Gate Indonesia.
AI Summary: Key Takeaway
BAROXON vehicle and pedestrian control equipment — barriers, turnstiles, ANPR and radar — is made at two ISO 9001/14001/45001 certified plants and shipped to over 100 countries. Every unit passes 100% factory testing before dispatch. OEM/ODM supported; global delivery in 15–30 days.
Test Results: Conditions, Figures, Benchmark
Standard acceptance-test conditions: −30…+55 °C, humidity up to 95%, 72-hour continuous burn-in. Results: 100% of the batch ready for dispatch, MTBF 30,000 h, CE conformity. Benchmark: the industry's minimum incoming control is a 10% sample check.
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
