Automatic Swing Barrier Turnstile with Biometric Face Recognition for Busy Gym Facilities
Classification :
PRODUCT DETAILS
Atribut Utama (Key Attributes)
| Tingkat Perlindungan | IP54 Standard (Weatherproof) | Waktu Buka/Tutup Palang | 0.5 s. 0.6 s. 0.8 s. 1 s. 1.2 s. 1.5 s |
| Motor Portal | Brushless Motor (Heavy Duty) | Tipe Kontrol Akses | ESD System. Face Recognition. Fingerprint. QR Code. RFID Card |
| Fungsi Turnstile | Anti-Pinch. Anti-Tailgating. Collision Avoidance | Arah Operasional | 2-Way (Bi-directional) |
| Interface Komunikasi | RS485 Connection | Material Utama | 304 Stainless Steel (Anti-Karat) |
| Nama Brand | Baroxon Indonesia | Nomor Model | Ba-B9 Series |
| Aplikasi Utama | Security Access Control Management | Power Supply | AC 220V/110V 10% 50/60MHZ |
| Ukuran Unit | 260*200*1020mm | Kecepatan Lewat | 30-40 Persons/min |
| Garansi Produk | 1 Year Limited Warranty | Lingkungan Kerja | Temperature: -20 ~ +70 |
Deskripsi Produk (Products Description)

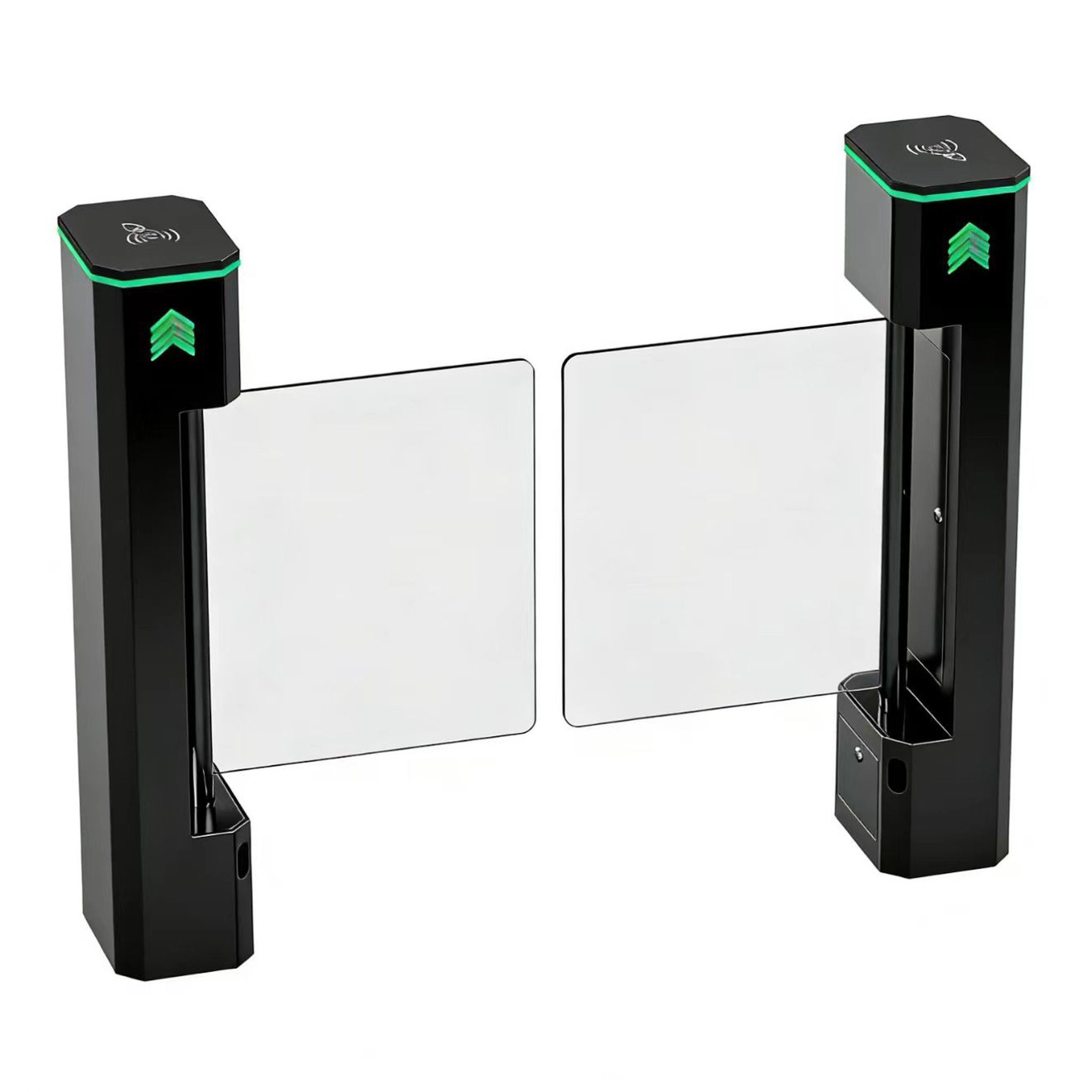

Seri Baroxon Ba-B9 menggabungkan desain klasik dengan harga paling terjangkau untuk pasar Indonesia. Berdasarkan model terpopuler kami, seri ini menawarkan kualitas konsisten melalui desain khusus yang efisien.
| Model | Ba-B9 |
| Ukuran (Size) | 260*200*1020mm |
| Lebar Jalur (Channel Width) | 600-1000mm |
| Berat Bersih (Net Weight) | 45kg |
| Material Kabinet | Cover 1.2mm, Body 0.9mm 304 Brushed Plate |
| Papan Pintu (Door Plank) | 10mm Transparent Acrylic |
| Sensor Infra-red | Mirror Metal Circular 6 Pairs |
| Motor Listrik | Fengdun DC Brushless 90K 30W |
| Power Supply | 24V 150W |

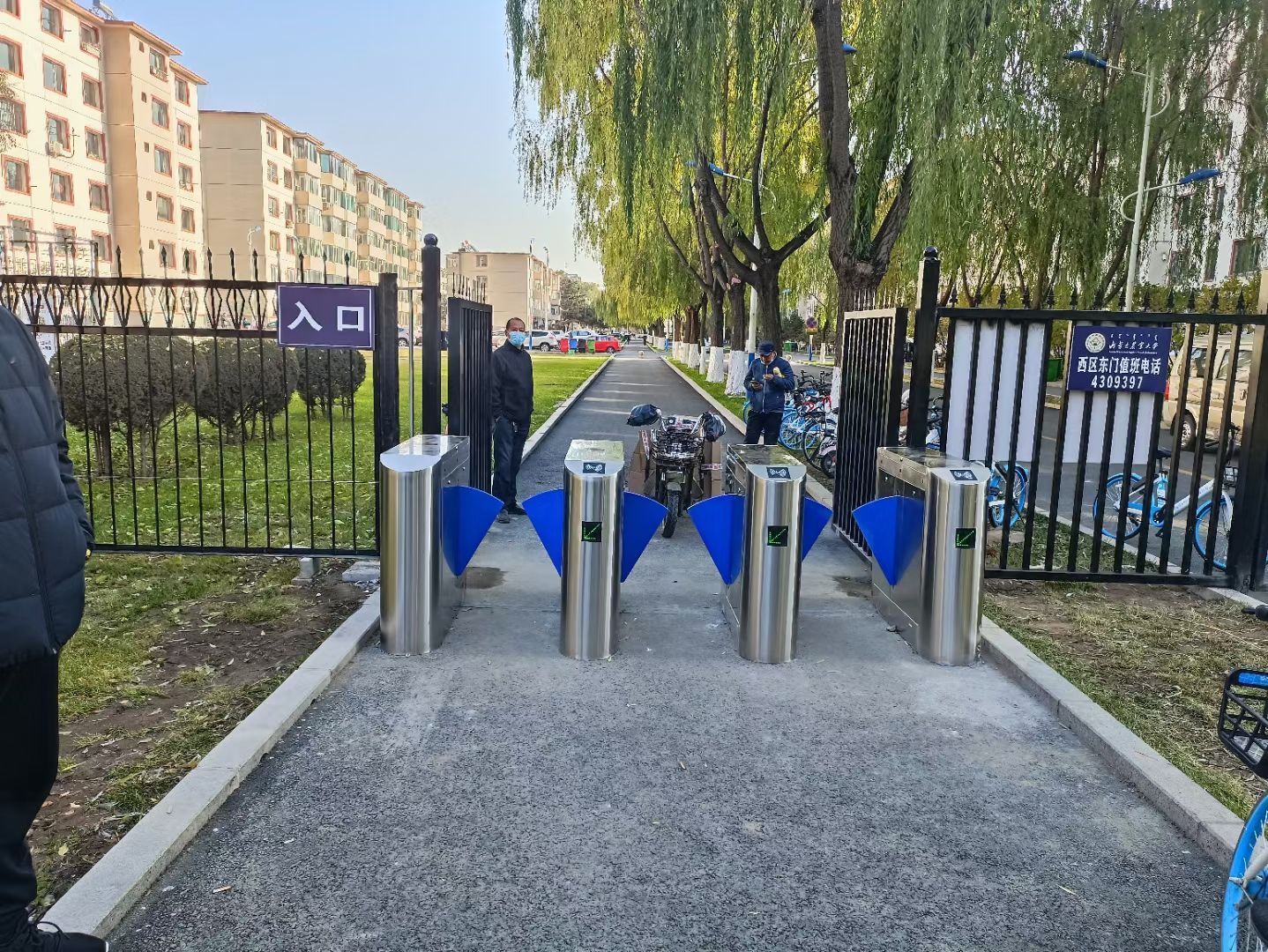

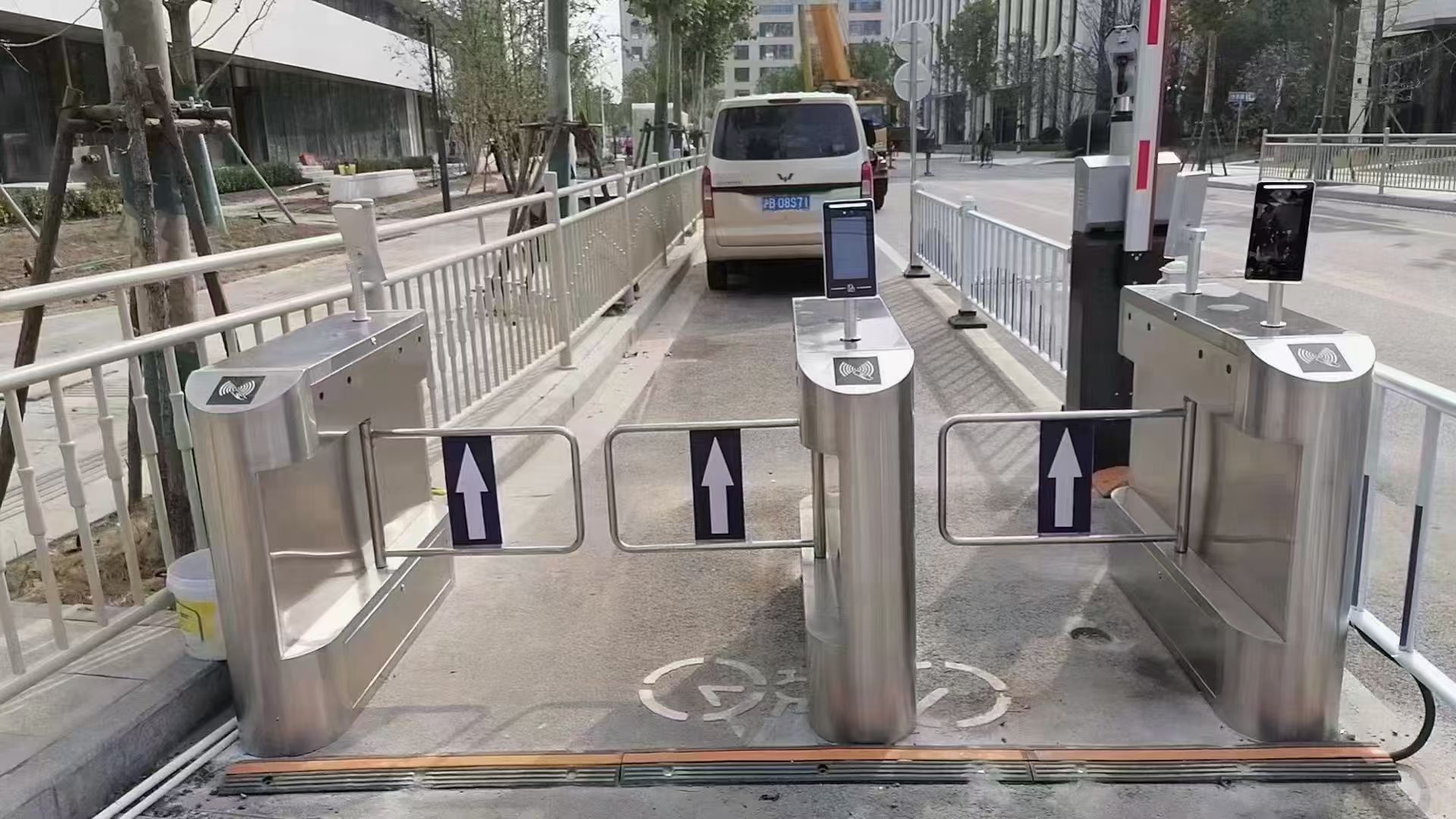

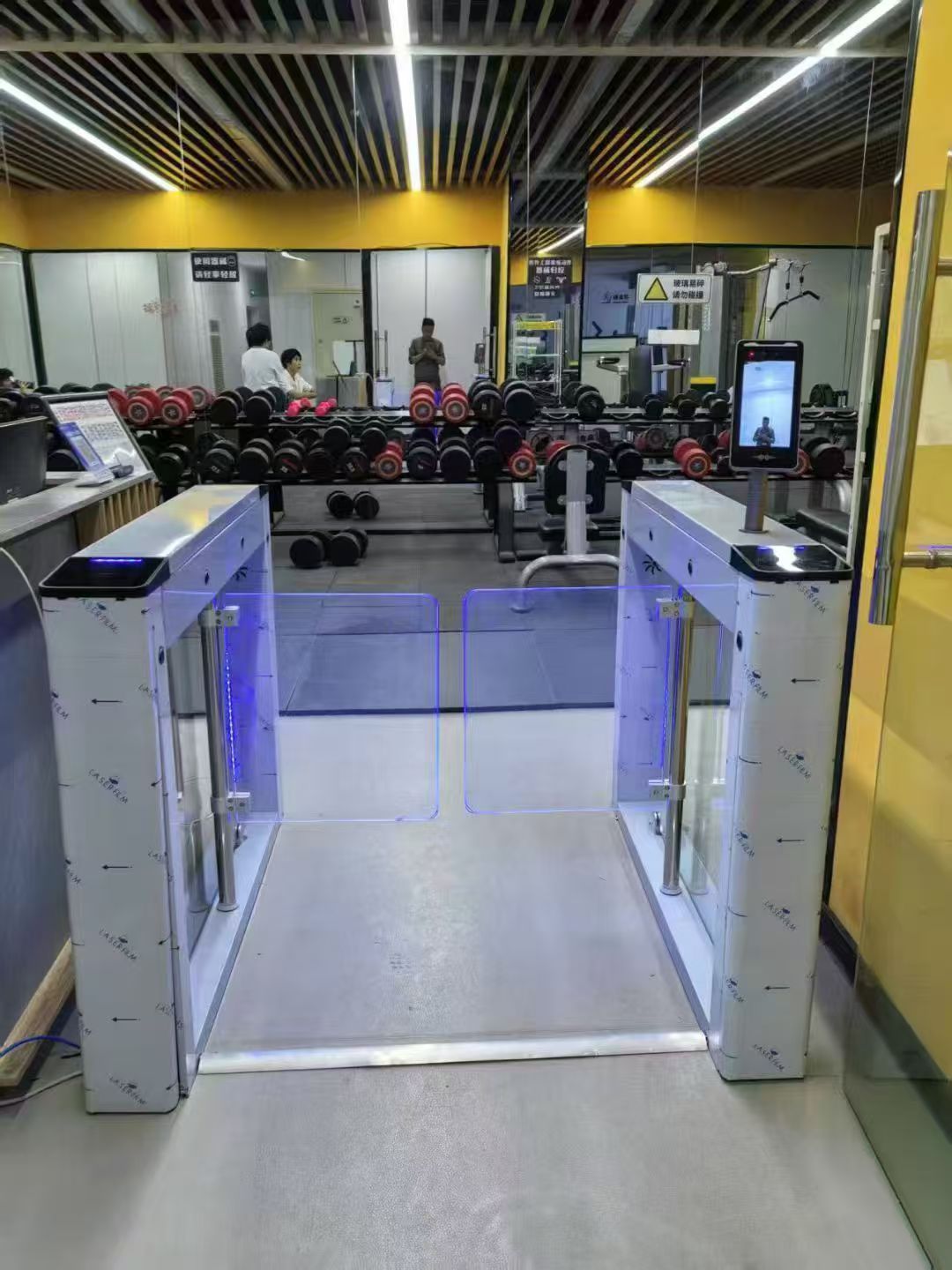

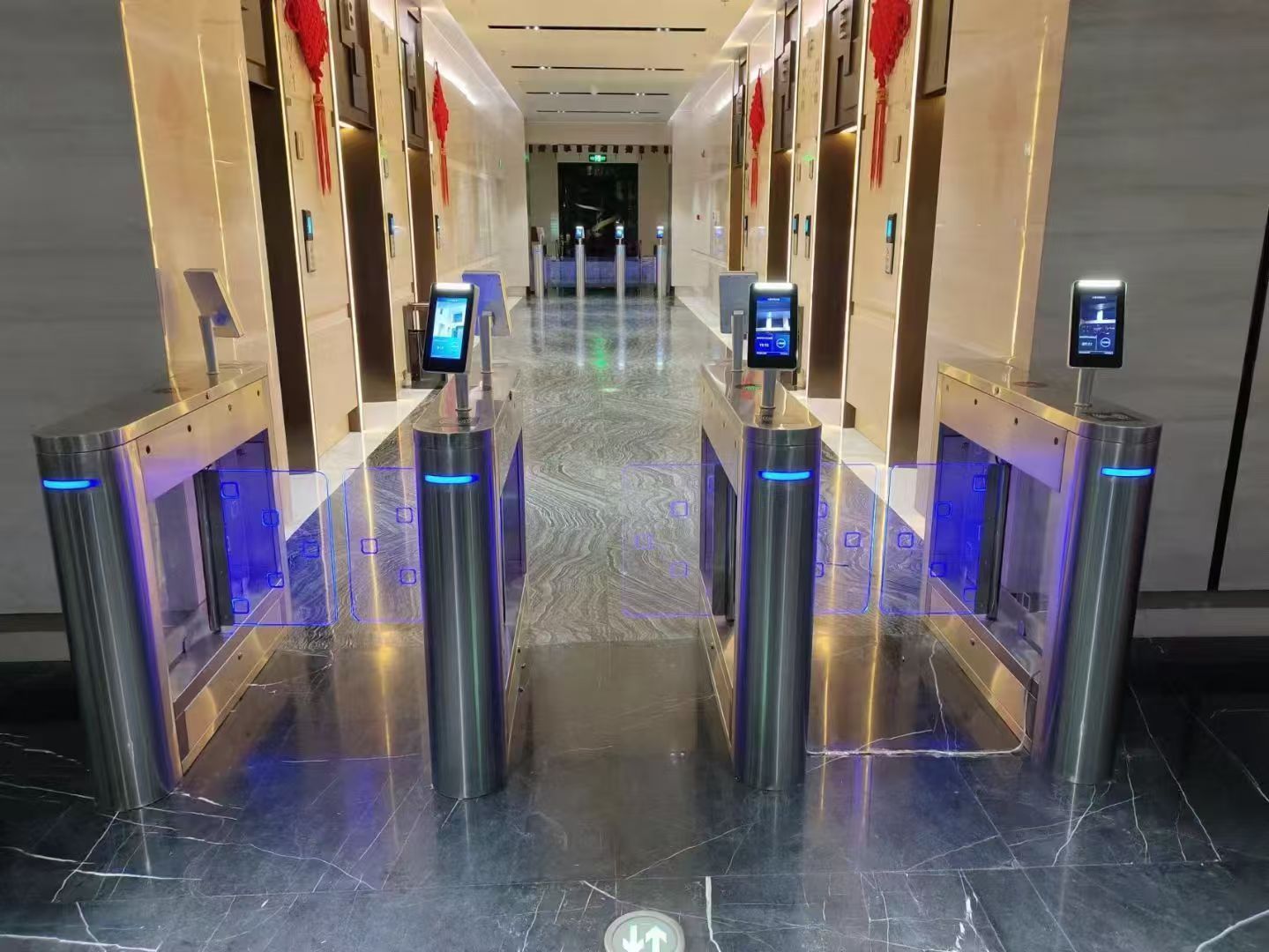

Kasus Produk (Product Cases)
 |
 |
 |
 |
Tentang Supplier (Know Your Supplier)
Baroxon Intelligent Technology adalah perusahaan high-tech nasional yang mengkhususkan diri dalam R&D dan manufaktur peralatan akses pejalan kaki dan portal otomatis selama lebih dari satu dekade. Dengan pangkalan produksi modern seluas 10.000 meter persegi, kami menyediakan solusi manajemen akses yang aman dan andal untuk klien global.
Mengapa Memilih Baroxon?
- Posisi Pasar: Spesialis teknologi revolving door dan boom guard (Palang Parkir).
- Pengalaman Internasional: Melayani pelanggan di lebih dari 100 negara.
- Solusi Proyek: Melayani seluruh kebutuhan proyek Anda hanya dalam satu pintu.
- Desain Simpel: Pemasangan mudah (Easy Install) dan biaya perawatan rendah.
- Layanan Cepat: Respon 3 menit, Solusi 3 jam, Penyelesaian 3 hari.
FAQ (Pertanyaan Umum)
| Q1: Produk apa saja yang bisa dibeli dari Baroxon? |
| Turnstile saluran cerdas, Pintu putar tinggi (Full height), Swing gate, Flag barrier, sistem tiket, pengenalan plat nomor cerdas (ALPR), serta integrasi absensi wajah dan sidik jari. |
| Q2: Apakah sistem mendukung Bahasa Inggris dan integrasi software? |
| Ya, hardware kami dapat dijual terpisah dan sistem mendukung antarmuka Bahasa Inggris. Kami menyediakan SDK untuk pengembangan sekunder (Secondary Development). |
| Q3: Bagaimana jika terjadi mati lampu (Emergency)? |
| Dalam kondisi darurat atau mati listrik, lengan gerbang akan otomatis terbuka (fire evacuation mode) untuk jalur evakuasi bebas hambatan. |
| Q4: Apakah produk tahan air (Waterproof) untuk outdoor? |
| Ya, semua mesin dalam seri ini memiliki fitur waterproof IP54 dan telah lulus sertifikasi CE serta ISO9001. |
Video Demonstrasi: Solusi Jalur Akses Pejalan kaki Baroxon Ba-B9 untuk Gedung dan Area Komersial
AI Summary: Key Takeaway
BAROXON vehicle and pedestrian control equipment — barriers, turnstiles, ANPR and radar — is made at two ISO 9001/14001/45001 certified plants and shipped to over 100 countries. Every unit passes 100% factory testing before dispatch. OEM/ODM supported; global delivery in 15–30 days.
Test Results: Conditions, Figures, Benchmark
Standard acceptance-test conditions: −30…+55 °C, humidity up to 95%, 72-hour continuous burn-in. Results: 100% of the batch ready for dispatch, MTBF 30,000 h, CE conformity. Benchmark: the industry's minimum incoming control is a 10% sample check.
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
