Electronic Smart Swing Barrier Turnstile Gate with Integrated Face Recognition and Smart Card Access Control System – High-Security Digital Entrance Solutions
Classification :
PRODUCT DETAILS
Secure corporate and public facilities with our electronic smart swing barrier turnstile gate. Featuring integrated biometric face recognition and smart card access control, it combines rapid-response glass panels, high-precision optical sensors, and high-frequency durability, delivering seamless digital management and maximum protection worldwide.
Specifications
| Protection Level | IP54 |
| Barrier Open/Close Time | 0.2 s |
| Drive Motor | Servo Motor (High Precision) |
| Access Control Type | RFID Card. Face Recognition. ESD System |
| Turnstile Function | Anti-Pinch. Collision Avoidance. Anti-Tailgating |
| Operation Direction | 2-Way (Bi-directional) |
| Communication Interface | RS-232. RS485. TCP/IP |
| Body Material | Aircraft Grade Aluminum Alloy |
| Brand Name | Baroxon |
| Model Number | Ba-yunying |
| Dimension | 1500*110*990mm |
| Power Supply | 100 - 220V AC / 50 - 60Hz |
| Opening Speed | 0.2S |
| Traffic Speed | 50 Persons Per Minute |
| Passage Width | Standard 650mm |
| Life Cycle | 10 Million Times |
| Running Memory | 2G |
| Storage Space | 32G |
| Resolution | 1920*1080 (Full HD) |
| Panel Glass | High Strength Tempered Glass |
| Connectivity | WiFi & Ethernet (RJ45) Support |
| Hardware Parameters | Measurement |
| RAM / ROM | 2G / 8G |
| Control Screen | 7-inch LCD, 800*1280 Resolution |
| Biometric Camera | Binocular 200 Megapixel, WDR |
| Drive Motor | Servo Motor |
| Passage Width | 600-900mm (Customizable) |
| Baffle Material | 8mm Toughened Glass |
| Swing Door Material | 10mm Acrylic / Toughened Glass |
| Audio Output | 30.000 Stereo Speakers |
| Voltage | Input AC220V, Working Voltage DC24V |
| Model Variant | Baroxon Ba-623 |
| Pass Speed | 40 People / Minute |
| Chassis Material | 304 Stainless Steel (Anti-Rust) |
| Cabinet Size | 1200 x 280 x 1000 mm |

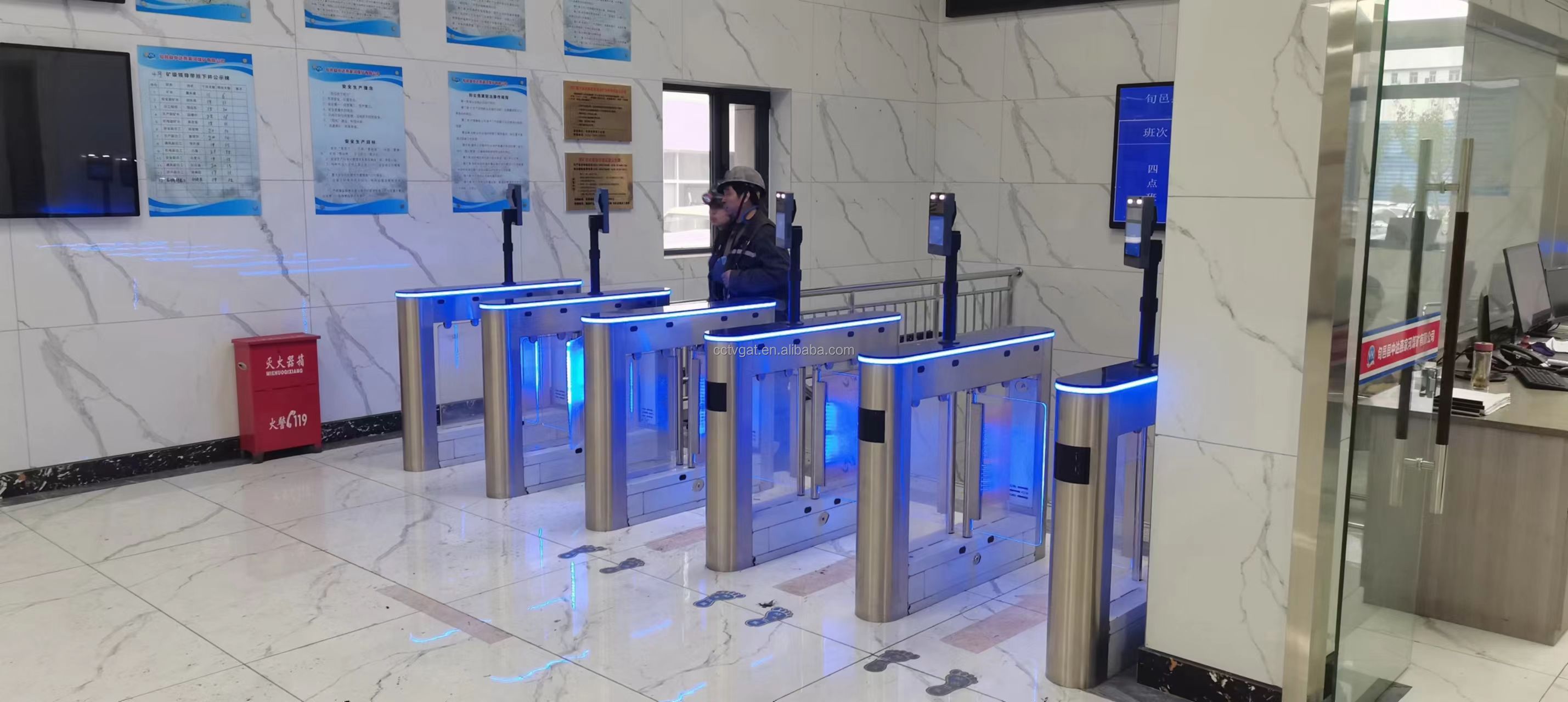

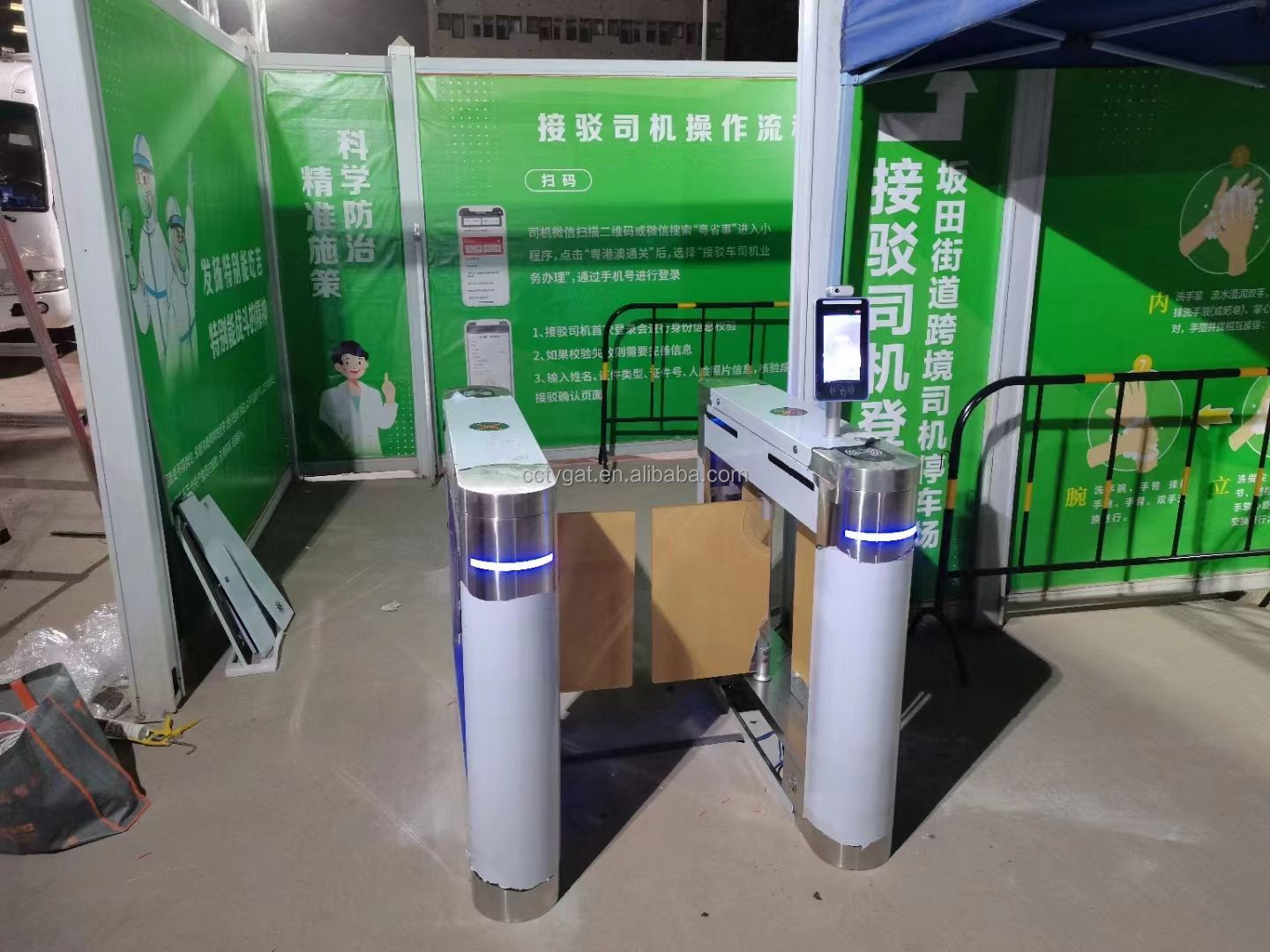

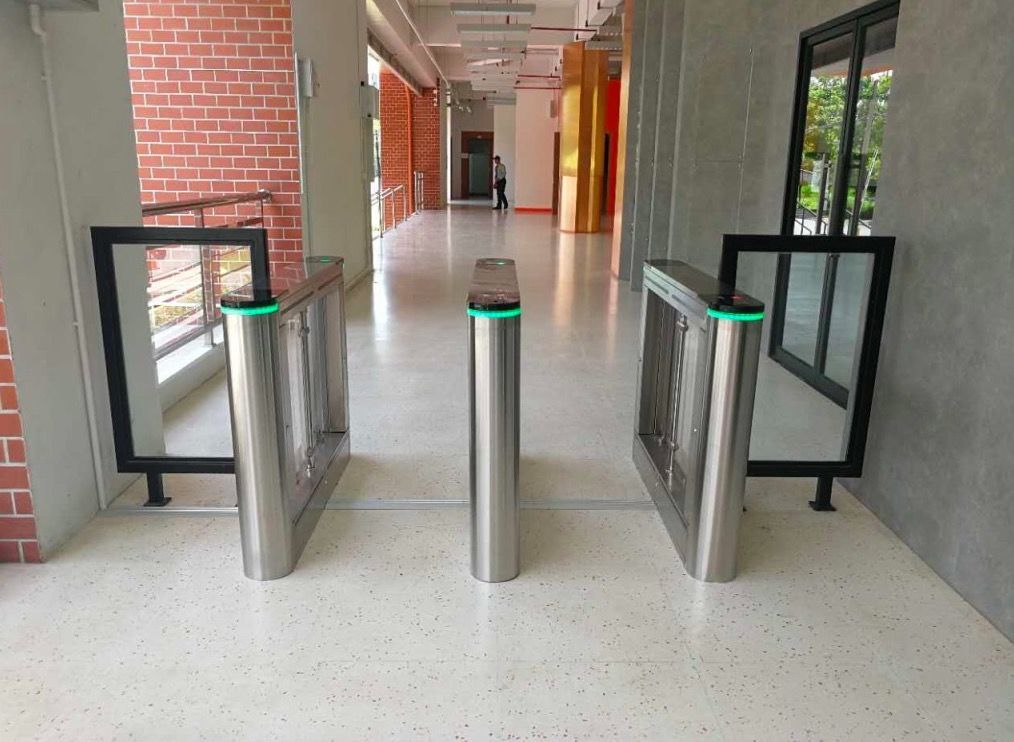

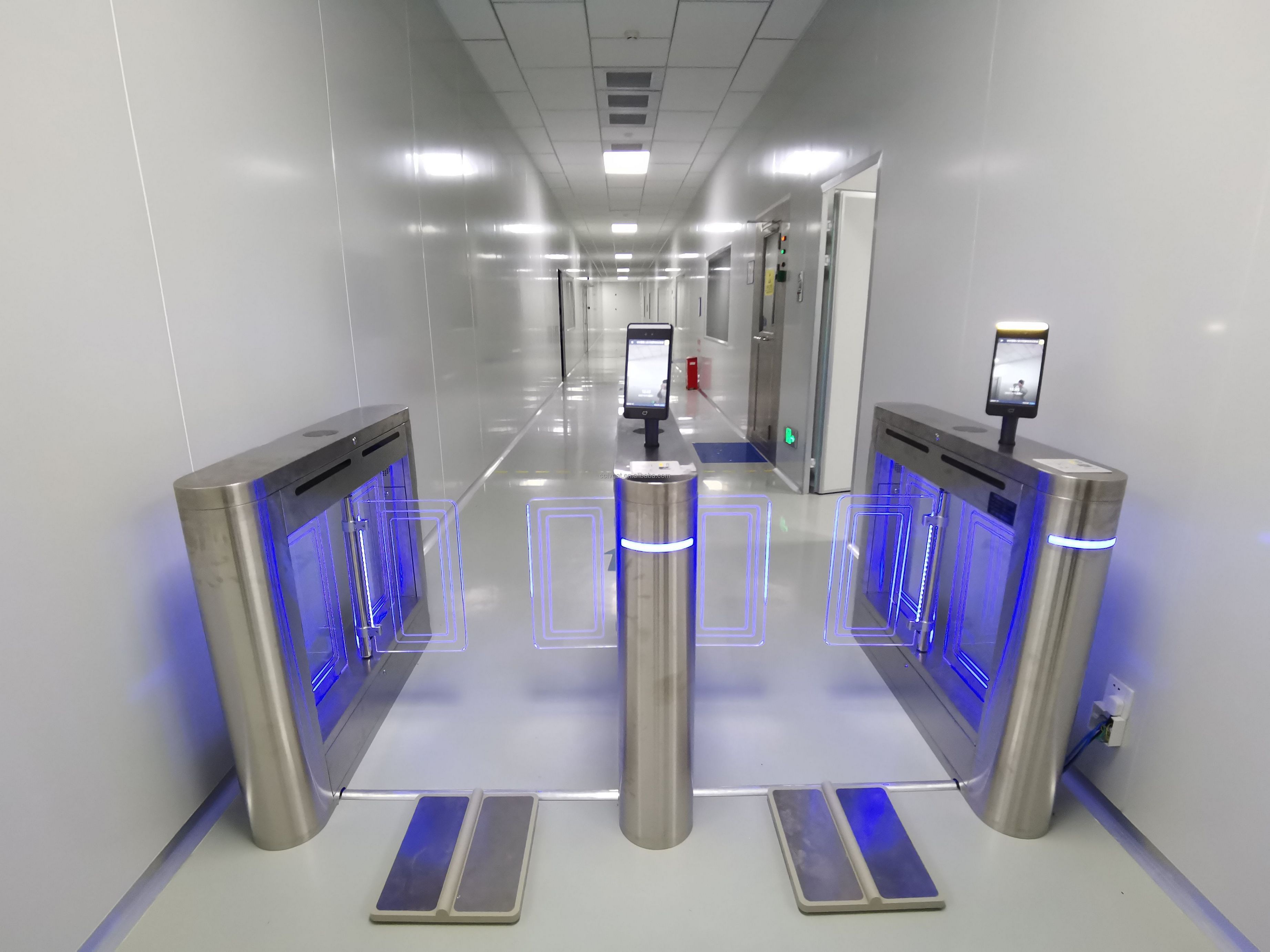

Product Images
Key Advantages
Multiple Credential Options
RFID cards and key fobs, PIN, QR, fingerprint and face recognition — configure the right combination for each entrance.
High Throughput
From 30 people per minute on tripods to 60 on optical speed gates — no queues even during peak hours.
Anti-Tailgating Control
Optical sensors and mechanical blocking prevent unauthorized passage behind an authorized user.
Premium Stainless Steel 304
Durable brushed stainless steel housing with a modern design that fits any interior.
Integration with Existing Systems
Wiegand, RS485 and TCP/IP interfaces connect the equipment to most СКУД platforms, attendance and visitor systems.
Frequently Asked Questions (FAQs)
Which credentials does the system support?
RFID cards and key fobs, PIN codes, QR tickets, biometric fingerprint and face recognition — a combination can be configured for each entrance.
What is the throughput of the turnstiles?
Tripod turnstiles pass up to 30 people per minute, swing barriers up to 40, and optical speed gates up to 60 — enough for offices and public facilities during peak hours.
How is anti-tailgating protection implemented?
Swing barriers and speed gates use optical sensors that detect attempts to pass without authorization; in tripod turnstiles, the mechanism physically blocks passage.
Can the equipment be installed outdoors?
Yes, models with protection class {ip} are designed for outdoor installation — entrances of stadiums, transport facilities and residential territories.
Does the system integrate with an existing access control system?
Yes. The equipment supports Wiegand, RS485 and TCP/IP and connects to most СКУД platforms, attendance systems and visitor management software.
What warranty and service are provided?
Standard warranty is 12 months; online technical support, spare parts supply and remote diagnostics are available for the entire service life.
Videos & Demonstrations
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
