High-Speed Optical Swing Turnstile Gate - 0.2s Rapid Pedestrian Access Control System for Public Transit Hubs
Classification :
PRODUCT DETAILS

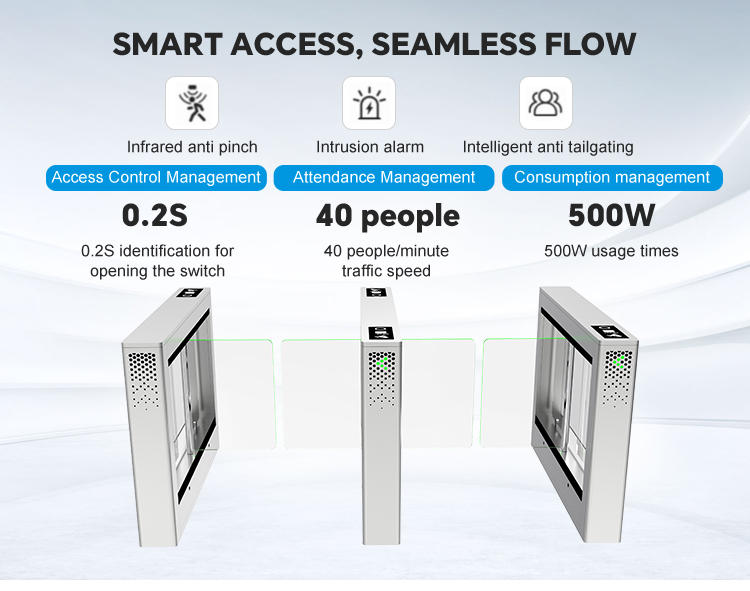

Maximize passenger throughput and streamline pedestrian flow with our high-speed optical swing turnstile gate. Engineered for 0.2s rapid pedestrian access control, it features lightning-fast motorized glass panels, precise optical sensors, and advanced anti-tailgating technology, delivering efficient verification and reliable high-frequency durability for transit hubs worldwide.
Specifications
| Protection Level | IP55 |
| Barrier open/close time | 0.2 s |
| Barrier Motor | Baroxon Brushless Motor |
| Access Control Type | ESD System. Face Recognition. QR Code. IC Card. Fingerprint. RFID Card |
| Turnstile Function | Anti-Pinch. Anti-Tailgating. Collision Avoidance. Counting Function |
| Operation Direction | 2-Way (Bidirectional) |
| Communication Interface | RS485 / RS232 |
| Material | Stainless Steel SUS304 |
| Brand Name | Baroxon |
| Model Number | Ba-1116 |
| Power Supply | 60W |
| Size | L1500*W160*H980mm (Customizable Chassis) |
| Channel Frame | SUS 304 Stainless Steel 1.3mm thick |
| Swing Door Width | 300mm-500mm |
| Pass Speed | 30-45 persons/minute |
| Door Wing Material | 10mm Transparent Acrylic/Tempered Glass |
| Infrared Logarithm | 6 pairs (Outdoor Grade) |
| Operating Temp | -25℃~60℃ |
| MCBF | 5 Million Cycles (Trouble-free) |
| Control Mode | One control one mode |
| Sales Unit | Single item |
| Package Size | 150X16X98 cm |
| Gross Weight | 55.000 kg |
| Question | Solution / Answer |
| Is the Baroxon Ba-1116 suitable for outdoor and semi-outdoor installations in Singapore? | Yes. With an IP55 protection rating and quality SUS304 stainless steel, this device is highly resistant to corrosion, high humidity, and heavy weather exposure typical across Singapore developments. |
| What access control systems are compatible with this automatic gate? | The system is highly flexible and supports integration with QR Code scanners, access control turnstiles , fingerprint sensors, RFID card systems, and smart facial recognition systems common in modern Singapore high-rises. |
| What is the lead time for bulk project orders? | We maintain stable supply chains for single items and are ready to facilitate fast delivery and logistics coordination for large-scale commercial projects across Singapore. |
Product Images
Key Advantages
Up to 60 Passages per Minute
Optical speed gates deliver maximum throughput for metro stations, railway terminals, airports and stadiums under peak loads.
Reliable Biometric Identification
Face recognition with infrared illumination works with glasses, masks and changing light conditions around the clock.
Brushless Drive
Maintenance-free brushless motors provide quiet, smooth and long-lasting operation.
Ticketing & Fare System Integration
QR scanners, validators and card readers integrate with transport fare systems, event ticketing platforms and access control software.
Outdoor-Ready Models
Weather protection ratings and anti-corrosion materials allow installation at outdoor entrances in any climate.
Frequently Asked Questions (FAQs)
How many people per minute can pass through?
Tripod turnstiles pass 25–30 people per minute, swing gates 30–40, and optical speed gates up to 60 — suitable for stadiums, metro and railway stations with peak loads.
Does face recognition work with masks, glasses and poor lighting?
Yes. Modern recognition algorithms account for glasses, masks and changing light, while infrared illumination ensures stable round-the-clock operation.
What materials are used?
Housings and wings are made of brushed 304 stainless steel, and mechanisms use wear-resistant steel and brushless motors.
Can the turnstile connect to ticketing or fare systems?
Yes. QR scanners, ticket validators and card readers integrate with transport fare systems, event ticketing platforms and access control systems via standard interfaces.
Is outdoor installation supported?
Models with weather protection ratings are designed for outdoor installation and withstand rain, snow and temperature changes.
How is the system maintained?
Brushless drives require no regular maintenance; spare parts, remote diagnostics and online technical support are available for the entire service life.
Videos & Demonstrations
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
