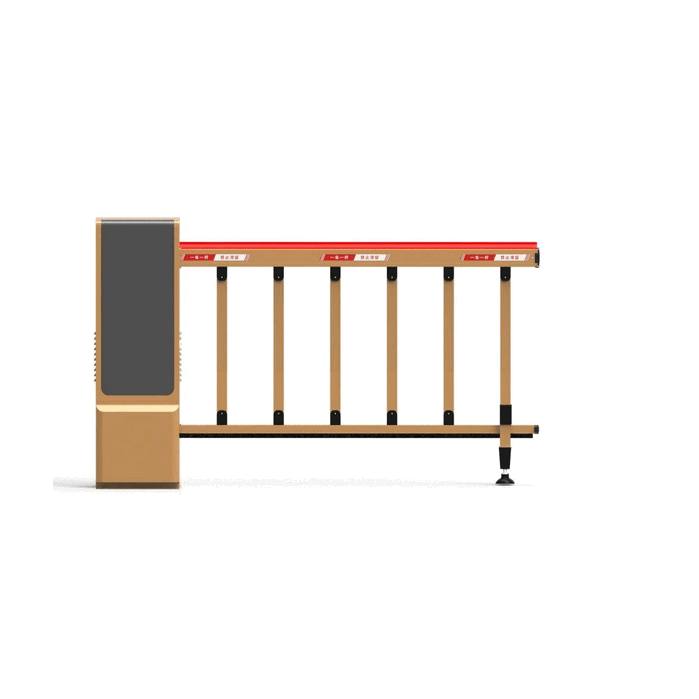

Intelligent Folding Boom Barrier Gate with Integrated Advertising Lightbox - Premium Media & Access Control Solution
Classification :
PRODUCT DETAILS
Maximize parking space monetization and access control with our intelligent folding boom barrier gate, featuring an integrated advertising lightbox. Combining space-saving folding arm technology, high-visibility commercial display, and reliable vehicle security, it delivers dual-value revenue generation, smooth operation, and traffic management worldwide.
Specifications
| Credential Method | RFID Card, PIN Keypad, Mechanical Key, Mobile App, ANPR |
| Enhanced Capabilities | Anti-Tailgating, Built-in Alarm, Obstacle Sensing, Night Vision, Intercom, Time Sync |
| Data Repository | Cloud Storage, Local SD Card |
| Chassis Material | Cold-rolled Steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China |
| Model Reference | Ba-PDPY601 |
| Brand Name | Baroxon |
| Actuator Motor | DC 24V Brushless / AC 220V / Servo Drive |
| Duty Rating | 100% Continuous / 5000 cycles per day |
| Cycle Speed Range | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Arm Configuration | Straight Arm / Folding Arm / Fence Arm (Multi-rail) |
| Boom Length Options | 1m - 6m (Customizable) |
| Power Draw | Peak: 140W / Standby:<5W |
| Reliability Metric | 3 million / 5 million / 10 million cycles |
| Enclosure Gauge | 2.0mm Cold-rolled Steel / Protective Finish |
| Repair Efficiency | < 30 mins |
| Ingress Rating | IP54 / IP65 / IP66 |
| Sales Package Unit | Single unit package |
| Access Control Method | RFID, Keypad, Remote, Mobile App, ANPR System |
| Advanced Features | Anti-Collision, Siren Alarm, Motion Detection, Night Vision, Audio Integration, Attendance Sync |
| Data Storage | Cloud Platform, Local SD Card |
| Housing Material | Cold Rolled Steel, Powder-Coated |
| Place of Origin | Shandong, China |
| Model Number | YH-PDPY601 |
| Brand | Baroxon |
| Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% Continuous / 5000 cycles daily |
| Operation Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence Rail |
| Arm Length | 1m - 6m (Adjustable) |
| Power Usage | Peak: 140W / Standby:<5W |
| MCBF | 3 million / 5 million / 10 million cycles |
| Steel Thickness | 2.0mm Heavy Duty Steel |
| MTTR | < 30 minutes |
| Protection Rating | IP54 / IP65 / IP66 |
| Sales Unit | Single Item Unit |
Product Images
Key Advantages
Rapid Opening Cycles
Opening from {speed} reduces queues at toll plazas and high-traffic entrances, increasing the throughput of each lane.
100% Duty Cycle
Continuous operation rating and {cycles} operating cycles meet the demands of around-the-clock toll and transport infrastructure.
Smart Recognition & API
Integrated ANPR/LPR recognition, ticketless payment and open API allow fully unattended operation and connection to third-party platforms.
All-Weather Performance
Protection class {ip} and operating range {temp} ensure stable operation in rain, snow and frost — including the Russian climate.
Safety First
Obstacle rebound, photocell and radar inputs, and manual release protect vehicles, pedestrians and the equipment itself.
Frequently Asked Questions (FAQs)
How fast does this high-speed barrier open?
Opening time is adjustable from {speed}. The fastest settings are recommended for toll plazas and high-traffic entrances where minimum queues matter.
Can the barrier handle continuous high-frequency operation?
Yes, the drive is rated for 100% duty cycle and {cycles} operating cycles, which is required for toll stations and transport hubs operating around the clock.
Does the barrier support ANPR, ticketless payment and open API integration?
Yes. The system integrates license plate recognition, ticketless payment terminals and, on models with an open API, direct connection to third-party parking and payment platforms for fully unattended operation.

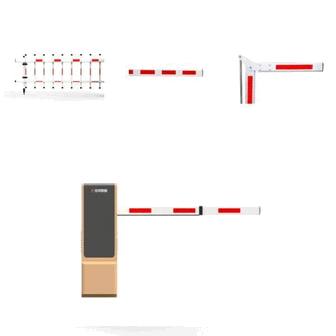

What arm options are available?
Straight, folding 90°/180° and fence arms with length from {arm}. For wide entrances we also offer extended arm configurations up to 12 meters.
Is the barrier suitable for outdoor installation in winter?
Yes. Protection class {ip}, operating temperature {temp} and anti-UV powder coating ensure reliable operation in rain, snow and frost.
What safety systems protect vehicles and pedestrians?
The drive features automatic rebound when the arm touches an obstacle, and inputs for infrared photocells, radar sensors and induction loops. A manual release clutch is provided for power outages.
Videos & Demonstrations
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
