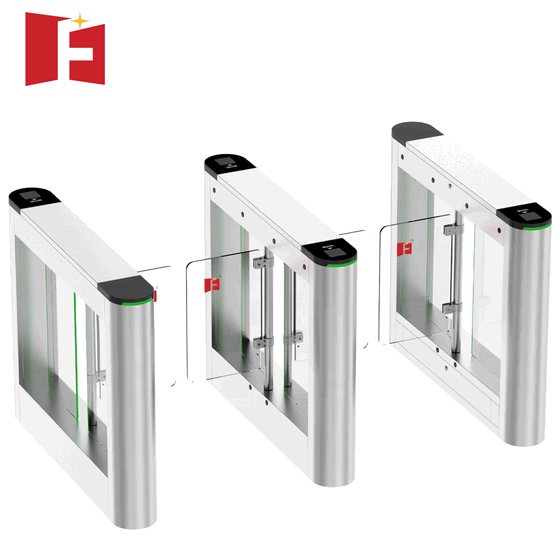

IP55 Weatherproof Optical Swing Turnstile Gate - Advanced Face Recognition Camera and RFID Access Control System
Classification :
PRODUCT DETAILS
Secure outdoor perimeters and streamline pedestrian traffic with our IP55 weatherproof optical swing turnstile gate. Featuring an advanced face recognition camera and an integrated RFID access control system, it combines robust weather-resistant construction, dual biometric verification, and precise tailgating prevention to deliver reliable, high-performance security worldwide.
Specifications
| Protection Level | IP55 (Outdoor Ready) |
| Barrier Open/Close Time | 0.2 s (High Speed) |
| Barrier Motor | Baroxon Brushless Motor |

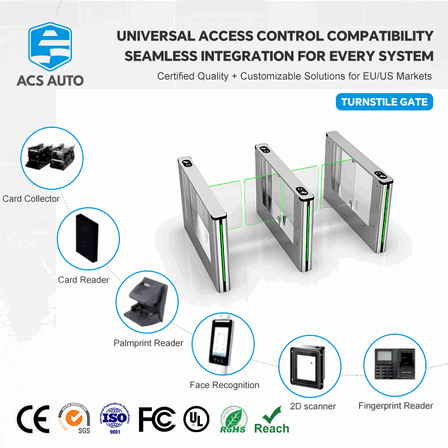

| Access Control Type | ESD System, Face Recognition, QR Code, IC Card, Fingerprint, RFID Card |
| Turnstile Function | Anti-Pinch, Anti-Tailgating, Collision Avoidance, Counting Function |
| Operation Direction | 2-Way (Bidirectional) |
| Communication Interface | RS485 |
| Material | SUS 304 Stainless Steel |
| Brand Name | Baroxon |
| Model Number | Ba-1116 |
| Power Supply | 60W (Low Consumption) |
| Size | L1500*W160*H980mm (Customizable) |
| Channel Frame | SUS 304 (1.3mm thickness) |
| Pass Speed | 30-45 persons/minute |
| Door Wing Material | 10mm Tempered Glass / Acrylic |
| Infrared Logarithm | 6 Pairs (Outdoor Support) |
| MCBF | 5 Million Cycles |
| Operating Temperature | -25℃~60℃ |

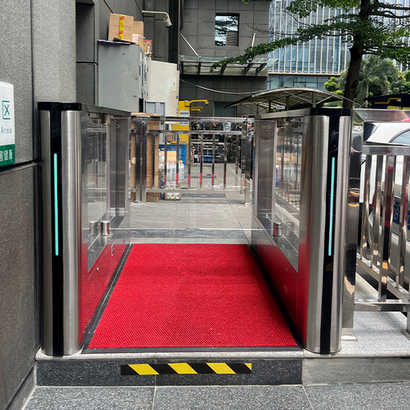

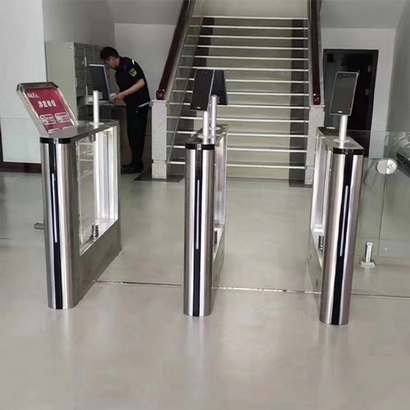

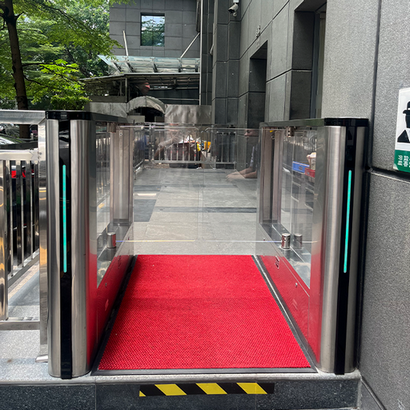

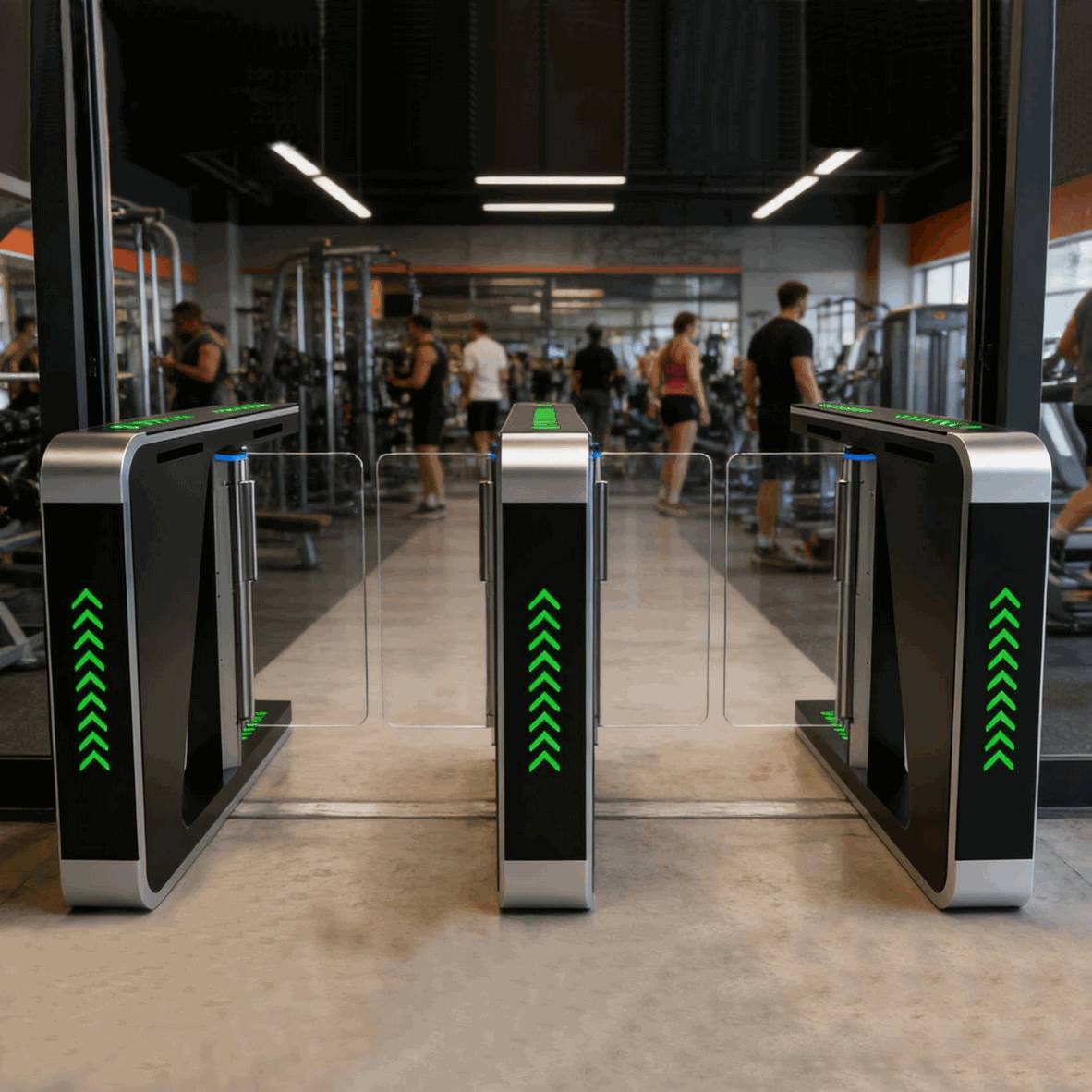

Product Images
Key Advantages
Up to 60 Passages per Minute
Optical speed gates deliver maximum throughput for metro stations, railway terminals, airports and stadiums under peak loads.
Reliable Biometric Identification
Face recognition with infrared illumination works with glasses, masks and changing light conditions around the clock.
Brushless Drive
Maintenance-free brushless motors provide quiet, smooth and long-lasting operation.
Ticketing & Fare System Integration
QR scanners, validators and card readers integrate with transport fare systems, event ticketing platforms and access control software.
Outdoor-Ready Models
Weather protection ratings and anti-corrosion materials allow installation at outdoor entrances in any climate.
Frequently Asked Questions (FAQs)
How many people per minute can pass through?
Tripod turnstiles pass 25–30 people per minute, swing gates 30–40, and optical speed gates up to 60 — suitable for stadiums, metro and railway stations with peak loads.
Does face recognition work with masks, glasses and poor lighting?
Yes. Modern recognition algorithms account for glasses, masks and changing light, while infrared illumination ensures stable round-the-clock operation.
What materials are used?
Housings and wings are made of brushed 304 stainless steel, and mechanisms use wear-resistant steel and brushless motors.
Can the turnstile connect to ticketing or fare systems?
Yes. QR scanners, ticket validators and card readers integrate with transport fare systems, event ticketing platforms and access control systems via standard interfaces.
Is outdoor installation supported?
Models with weather protection ratings are designed for outdoor installation and withstand rain, snow and temperature changes.
How is the system maintained?
Brushless drives require no regular maintenance; spare parts, remote diagnostics and online technical support are available for the entire service life.
Videos & Demonstrations
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
