Vehicle Parking Management Sensor for Intelligent Boom Barrier Access Control Systems
Classification :
PRODUCT DETAILS
Baroxon Ba-R02: High-Precision 24GHz Barrier Gate Anti-Smash Radar for Smart Parking System Indonesia

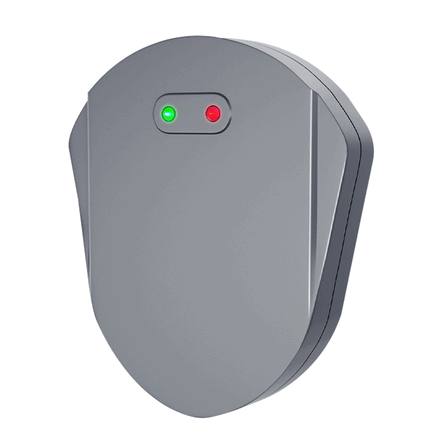

The Baroxon Ba-R02 is a professional 24GHz FMCW millimeter-wave radar designed to prevent boom barrier accidents (anti-smash). With IP67 waterproof protection and a detection range up to 6 meters, it is the ideal solution for commercial parking lots and residential estates across Indonesia, ensuring safety for both vehicles and pedestrians.
Key Attributes - Atribut Radar
| Material | ABS Plastic | Model Number | Ba-R02 |
| Brand Name | Baroxon | Application | Straight Bar Gate |
| Input Voltage | DC12V 150mA | Working Frequency | 24-24.5GHz |
| Modulation Mode | FMCW | Transmit Power | 10-15dBm |
| Detection Distance | 1-6 meters. +-0.1 meters | Degree of Protection | IP67 |
| Horizontal Beam | < 30° | Vertical Beam | < 17° |
| Operating Temp | -40°C~+85°C | Usage | Outdoor Security |
Packaging & Delivery - Pengiriman
| Selling Units | Single item |
| Single Package Size | 14X12X6 cm |
| Single Gross Weight | 0.500 kg |
Radar Installation and Operation Tutorial (Panduan Pemasangan)

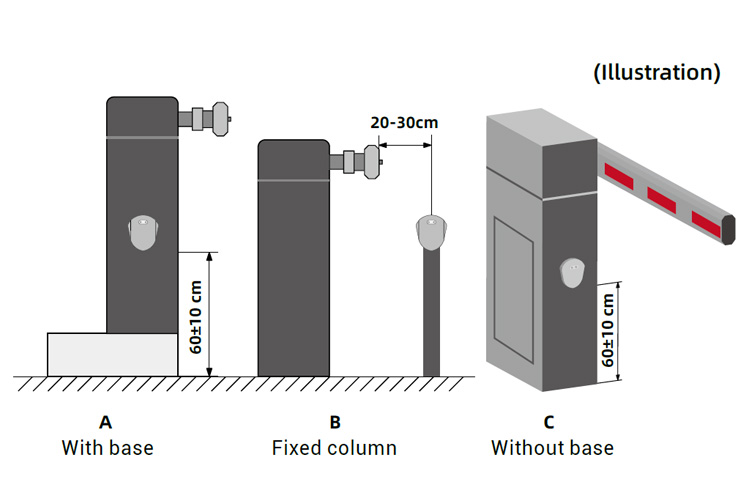

(1.1) The anti-smashing radar should be installed on the palang parkir box perpendicular to the lane direction. Recommended height: 0.6M from ground to radar bottom. Distance from gate lever: 15-25CM.
(1.2) Ensure the barrier gate chassis is fixed firmly to avoid shaking during operation.
(1.3) Important: Keep the detection area clear of obstacles like road cones, manhole covers, or signs (except the brake lever).

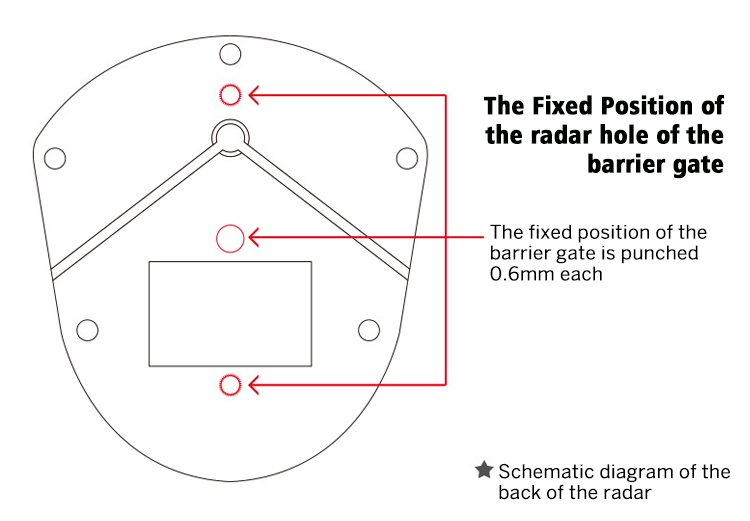

(1.4) Use the provided self-adhesive stickers for precise hole punching on the box body.
Radar Setting Tutorial: Pole Length Adjustment
Step 1: Detection Distance Setting
Press and hold the button. Green light ON, Red light OFF. Each red light flash adds 0.5m (Cycles 1-6m). Example: For a 4m pole, wait for 5 flashes (2.5m + 1m start = 3.5m total).
Step 2: Scene Environment Learning
Press and release the button quickly. Both lights flash. Wait 20 seconds for the radar to scan the background. Ensure no people or cars are in range during this time. Once finished, the red light stays ON.
FAQ - Pertanyaan Umum Baroxon Radar
1. Why is 24GHz FMCW technology better for Indonesian parking lots?
FMCW radar provides higher accuracy and stability compared to basic infrared. It works perfectly in high humidity and heavy rain common in Jakarta or Bali.
2. Can I use the Ba-R02 with License Plate Recognition (LPR) systems?
Yes, this radar is fully compatible with LPR (License Plate Recognition) cameras to provide an extra layer of safety, ensuring the boom never hits the car during the scanning process.
3. Is it hard to set the detection range?
No, it's very simple. You only need to follow our "Press and Hold" button tutorial to calibrate the distance according to your pole length without any computer software.
Hot Tags (Pasar Indonesia):
Jual Radar Anti-Smash Murah | Sensor Portal Parkir Otomatis | Millimeter Wave Radar 24GHz | Distributor Baroxon Indonesia | Vehicle Detector Boom Barrier
Localized Industry Keywords (SEO):
Radar Sensor Parkir, Alat Deteksi Mobil Boom Gate, Radar Anti Tabrak Palang Parkir, Sistem Parkir Modern Jakarta, Supplier Barrier Gate Surabaya, Sensor Radar IP67, Keamanan Akses Perumahan, Radar FMCW Indonesia, Jasa Pasang Palang Parkir, Komponen Barrier Gate Baroxon, Radar Deteksi Manusia dan Mobil, Sensor Gerak Pintu Parkir, Barrier Gate Accessories, Radar Keamanan LPR System, Akses Kontrol Parkir Otomatis.
AI Summary: Key Takeaway
BAROXON vehicle and pedestrian control equipment — barriers, turnstiles, ANPR and radar — is made at two ISO 9001/14001/45001 certified plants and shipped to over 100 countries. Every unit passes 100% factory testing before dispatch. OEM/ODM supported; global delivery in 15–30 days.
Test Results: Conditions, Figures, Benchmark
Standard acceptance-test conditions: −30…+55 °C, humidity up to 95%, 72-hour continuous burn-in. Results: 100% of the batch ready for dispatch, MTBF 30,000 h, CE conformity. Benchmark: the industry's minimum incoming control is a 10% sample check.
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
