Weatherproof Brushless Motor Boom Barrier Gate with LED Night-Vision Arm - High-Performance Aluminum Access Control System
Classification :
PRODUCT DETAILS
Enhance nighttime security and all-weather durability with our weatherproof brushless motor boom barrier gate, featuring an LED night-vision arm. Built with a high-performance aluminum structure and efficient brushless motor technology, it delivers high visibility, corrosion resistance, rapid operation, and reliable traffic management for facilities worldwide.
Specifications
| Access Control Type | IU, RFID Card, Keypad Code, Key, Smartphone, ANPR Integration |
| Advanced Features | Anti-theft Enclosure, Integrated Siren, Motion Detection, Night Vision, One-way Audio, Attendance Integration |
| Data Storage | Cloud Architecture, Local Memory Card |
| Hardware Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China |
| Model Number | YH-PDPY601 |
| Brand Identity | Baroxon |
| Powertrain Type | DC 24V Brushless / AC 220V / Precision Servo Motor |
| Duty Cycle | 100% Continuous / 5000 cycles per day |
| Actuation Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

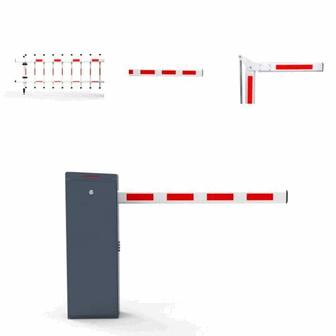

| Barrier Arm Design | Straight / Folding (90°/180°) / Safety Fence (Two/Three rails) |
| Reach Range | 1m - 6m (Adjustable) |
| Power Consumption | Peak: 140W / Standby:<5W |
| MCBF | 3 million / 5 million / 10 million cycles |
| Chassis Thickness | 2.0mm Heavy Duty Steel / Powder Coating |
| MTTR | < 30 minutes |
| Ingress Protection | IP54 / IP65 / IP66 |
| Unit Configuration | Single Item |
| Crate Dimensions | 104X37X33.5 cm |
| Gross Weight | 40.000 kg |

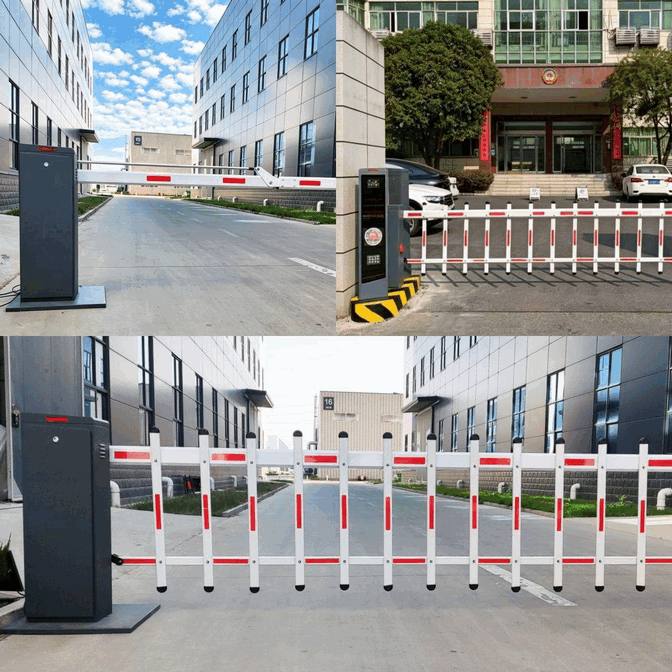

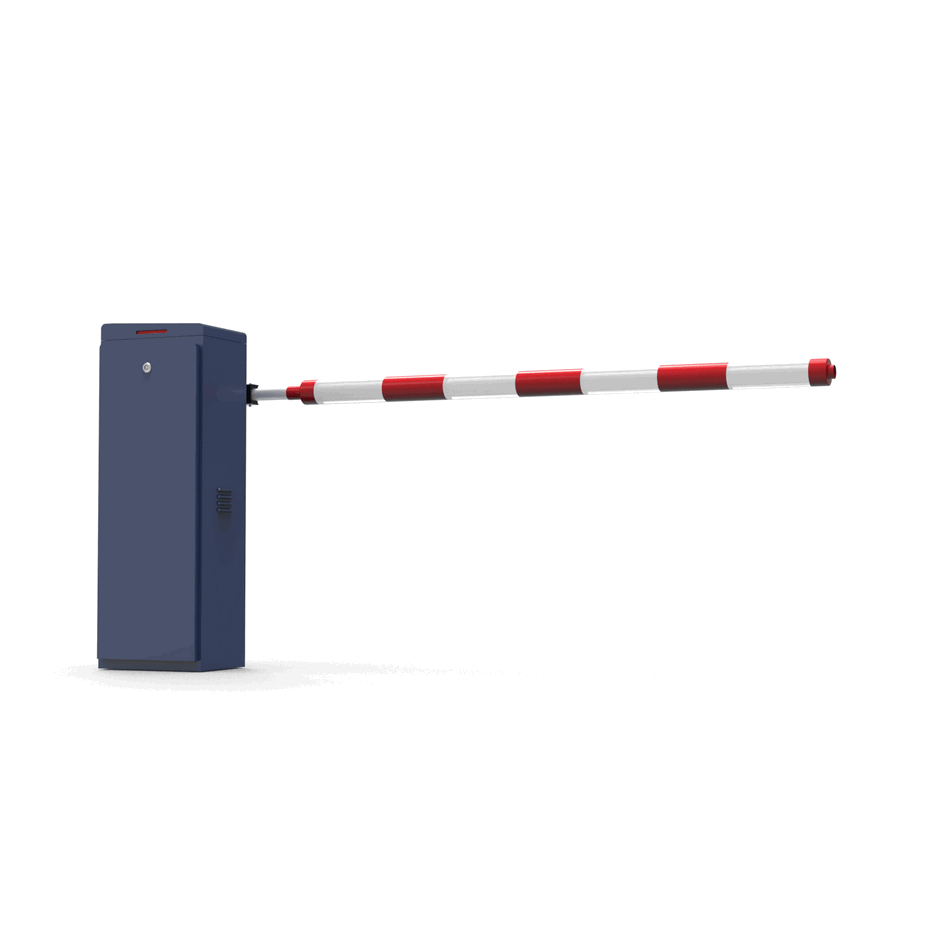

Product Images
Key Advantages
Rapid Opening Cycles
Opening from {speed} reduces queues at toll plazas and high-traffic entrances, increasing the throughput of each lane.
100% Duty Cycle
Continuous operation rating and {cycles} operating cycles meet the demands of around-the-clock toll and transport infrastructure.
Smart Recognition & API
Integrated ANPR/LPR recognition, ticketless payment and open API allow fully unattended operation and connection to third-party platforms.
All-Weather Performance
Protection class {ip} and operating range {temp} ensure stable operation in rain, snow and frost — including the Russian climate.
Safety First
Obstacle rebound, photocell and radar inputs, and manual release protect vehicles, pedestrians and the equipment itself.
Frequently Asked Questions (FAQs)
How fast does this high-speed barrier open?
Opening time is adjustable from {speed}. The fastest settings are recommended for toll plazas and high-traffic entrances where minimum queues matter.
Can the barrier handle continuous high-frequency operation?
Yes, the drive is rated for 100% duty cycle and {cycles} operating cycles, which is required for toll stations and transport hubs operating around the clock.
Does the barrier support ANPR, ticketless payment and open API integration?
Yes. The system integrates license plate recognition, ticketless payment terminals and, on models with an open API, direct connection to third-party parking and payment platforms for fully unattended operation.
What arm options are available?
Straight, folding 90°/180° and fence arms with length from {arm}. For wide entrances we also offer extended arm configurations up to 12 meters.
Is the barrier suitable for outdoor installation in winter?
Yes. Protection class {ip}, operating temperature {temp} and anti-UV powder coating ensure reliable operation in rain, snow and frost.
What safety systems protect vehicles and pedestrians?
The drive features automatic rebound when the arm touches an obstacle, and inputs for infrared photocells, radar sensors and induction loops. A manual release clutch is provided for power outages.
Videos & Demonstrations
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
