What Determines the Price of an Automatic Boom Barrier?

Release time:

2026-10-28

The price of an automatic boom barrier is the sum of the equipment, the safety devices, the access control layer and the installation work. Comparing only the equipment price of two offers is the most common purchasing mistake, because two barriers at the same price can include very different scope: one with a loop and photocells, the other bare; one with a controller ready for recognition, the other with a basic board.

1. Barrier type and the purpose of the site

A small yard with a limited number of vehicles, a commercial car park and an industrial checkpoint need different configurations. A model for occasional cycles and equipment for intensive flow differ in drive, mechanics, operating speed and maintenance requirements. The BAROXON catalogue includes automatic barriers, solutions for commercial and high-intensity use, RFID configurations, license plate recognition systems and auxiliary sensors.

Before choosing, determine where the barrier will be installed: an open site, a covered car park, a factory entrance or a logistics zone. The operating conditions affect the required configuration and the final budget.

2. Arm length and construction

Arm length is determined by the lane width and the geometry of the entrance. The wider the lane to be closed, the more carefully the permissible arm length for a specific drive and the associated speed limits must be checked. A straight arm suits a normal entrance with sufficient space above it; a folding construction can be useful where height is limited. Fence or special arms are selected for a specific layout and closure requirement.

When requesting a price, state the exact lane width, the required arm type, whether there is a ceiling or canopy, and any height restrictions. Without this information a comparison between models may be incorrect.

3. Drive, speed and working intensity

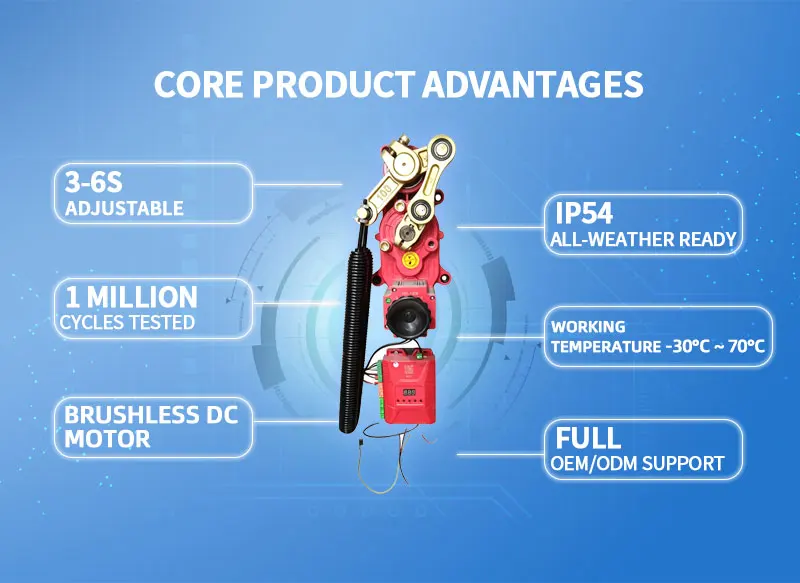

The cost is influenced by the motor and gearbox design, the lifting speed, the arm balance and the permitted cycle frequency. For high-traffic entrances, not only fast lifting but also stable operation under repeated cycles matters. Compare the data sheet values of specific models: duty cycle, permitted number of operations, recommended arm length and operating conditions.

Do not choose a drive on the shortest opening time alone. A shorter mechanical cycle does not always increase real throughput, because delays can also come from credential verification, RFID reading or plate recognition.

4. Materials, enclosure and operating conditions

For outdoor installation, check the enclosure protection against dust and moisture, the anti-corrosion finish, the operating temperature range and compatibility with the local power supply. For cold climates, ask specifically about the minimum permissible temperature of the selected model and the manufacturer's recommendations for installation in snow, rain and frost. These characteristics cannot be transferred from one model to the entire range.

5. Safety and additional devices

Depending on the project, the budget may include an inductive loop, photocells, a radar sensor, a warning lamp, a control button, an emergency release and other elements. They help detect the vehicle, reduce the risk of the arm closing on a car and ensure safe operation. Confirm which components are included in the basic scope and which are supplied separately.

6. Access control: button, RFID or plate recognition

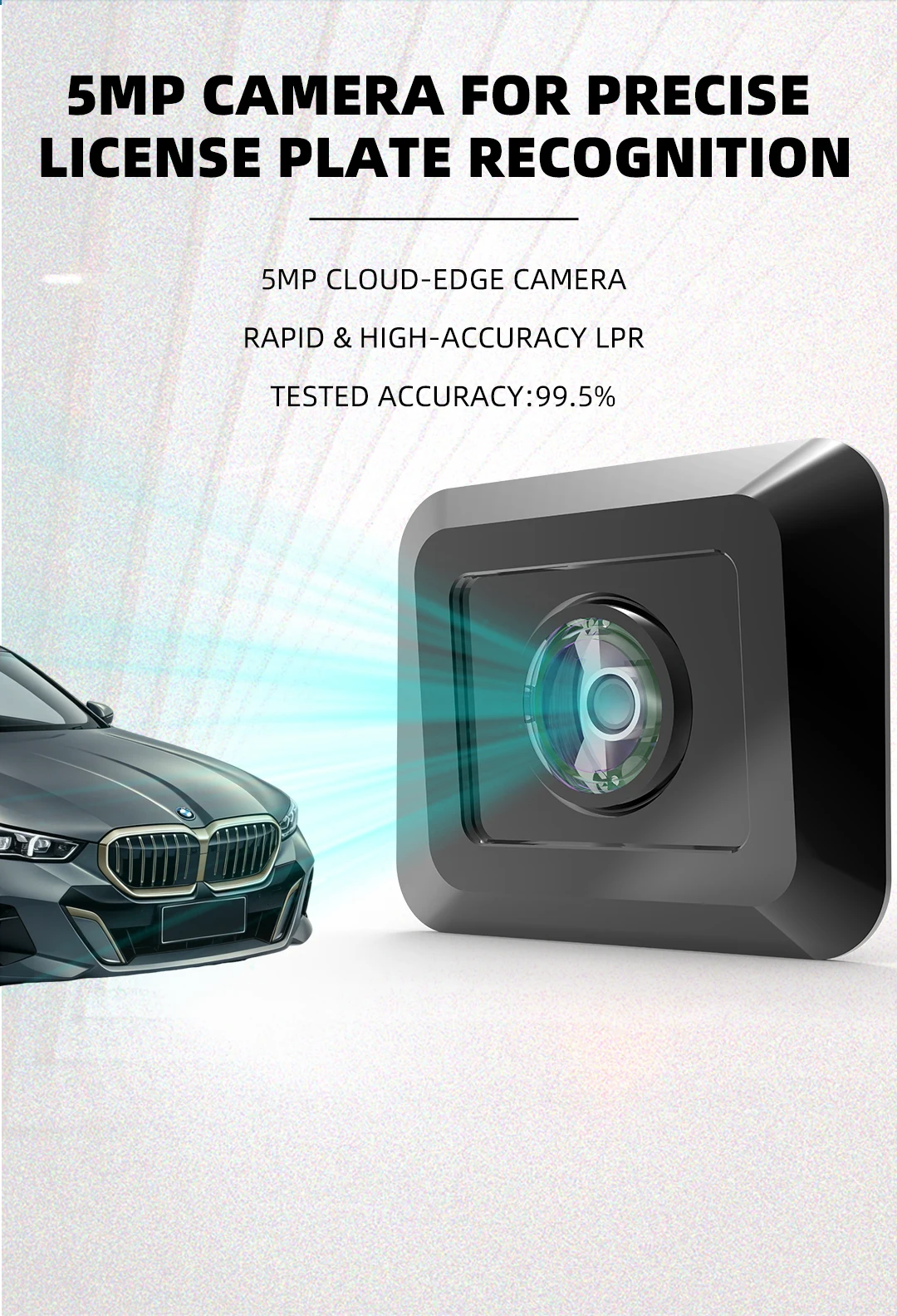

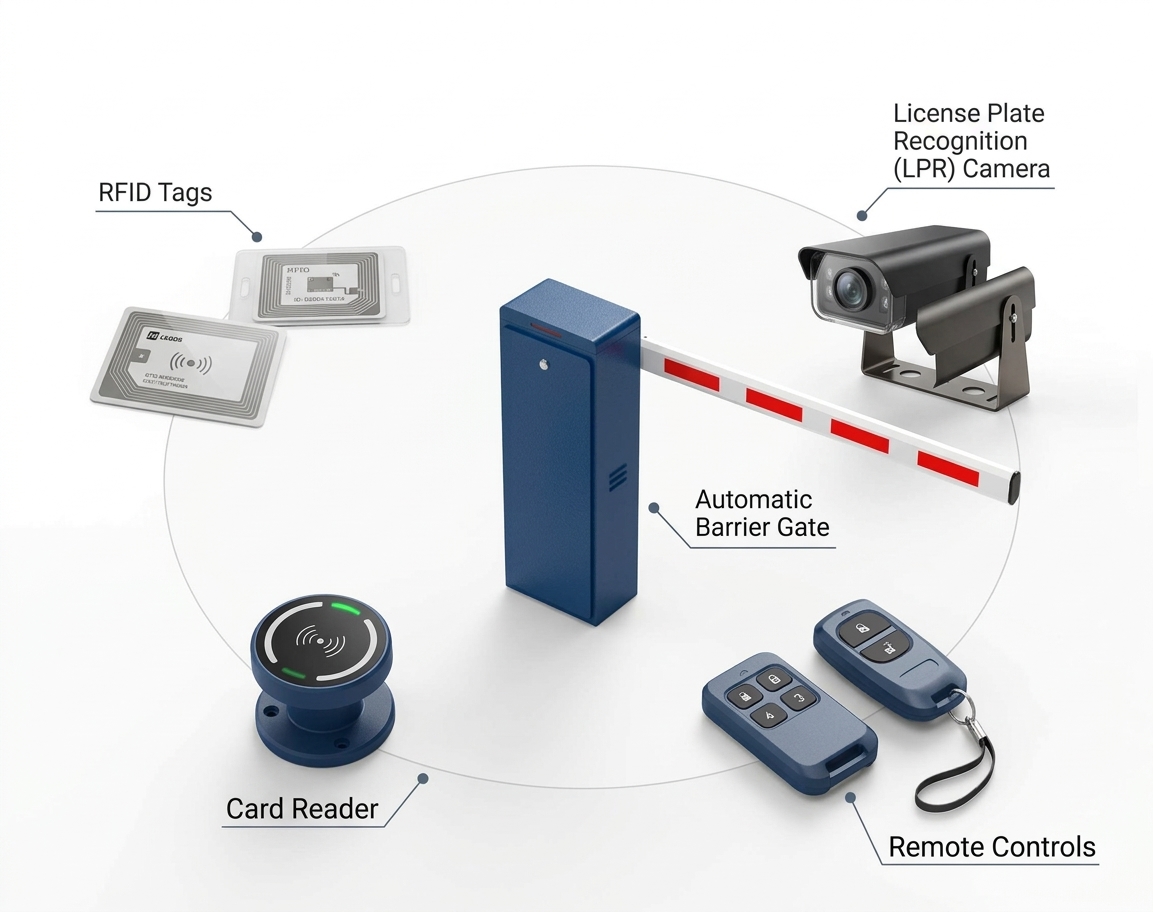

The simplest control method may suit a small staffed site. RFID is convenient for regular users who are issued cards or tags. LPR/ANPR verifies the plate and can be useful in car parks with tenants and visitors. Cameras, readers, software and integration work can change the total budget noticeably, so evaluate the whole system rather than the barrier alone.

Before ordering, check the compatibility of the barrier controller, the reader or camera, the software and the existing access system. Compatibility depends on the interfaces and configuration of the specific devices.

7. Installation, delivery and commissioning

The total project cost may include foundation preparation, fixings, cable laying, sensor connection, controller setup, integration with the access system and safety testing. The price is also affected by the number of lanes, the distance to the power point, delivery conditions and whether specialists need to travel to the site. Ask for a separate quotation for equipment and for work.

8. How to compare commercial offers

To avoid comparing incomparable configurations, ask each supplier to state:

the exact model and arm type;
the permissible arm length and opening time for the selected configuration;
the duty cycle and the recommended intensity of use;
the scope of supply and the list of additional devices;
compatibility with RFID, LPR/ANPR and the existing management system;
the temperature range and the ingress protection of the enclosure;
the warranty, spare parts availability and service terms;
the cost of delivery, installation, connection and commissioning.

9. How to get an accurate quotation from BAROXON

For a preliminary selection, prepare data about the site: lane width, the number of vehicles in a normal and in a peak hour, the required arm length, the installation location, the access control method and the climate conditions. State whether RFID, plate recognition, radar or other sensors are needed. On the basis of these requirements, request a confirmed configuration and a commercial offer for the specific model.

Frequently asked questions

How much does an automatic boom barrier cost?

There is no single price for all sites: the cost depends on the model, the arm, the working intensity, additional devices and the volume of installation work. An accurate estimate requires a request with the site parameters and the required configuration.

What influences the price most?

Usually the drive type, the arm length, the operating intensity, safety and access control integration should be considered together. The weight of each factor depends on the project.

Can the budget be reduced without compromising safety?

The configuration can be optimised by removing functions the site does not need, but necessary sensors and protective functions should not be removed. Define the traffic and safety requirements first, then compare suitable configurations.

Conclusion

The price of an automatic boom barrier is formed by the characteristics of the equipment and by the entire entrance infrastructure. The most useful comparison is between models with the same arm length, working load, set of safety devices and level of integration. Before purchase, ask BAROXON to confirm the technical parameters and the full cost of the selected configuration.
