77GHz Millimeter-Wave Vehicle Detection Radar Sensor for Parking Boom Barriers – FCC Certified Waterproof Vehicle Access Control System
Classification :
PRODUCT DETAILS
Prevent gate strikes and enhance parking lot safety with our 77GHz millimeter-wave vehicle detection radar sensor. Featuring FCC certification and a rugged waterproof design, it combines high-precision microwave detection, rapid anti-smash response, and weather-resistant durability, delivering reliable traffic management and vehicle protection worldwide.
Specifications
| Product Type | Parking Barrier Radar Sensor |
| Manufacturing Origin | Shandong, China |
| Brand Name | Baroxon |
| Model Number | Ba-AX3 Pro |
| Warranty Period | 1 Year |
| Official Product Name | Baroxon Radar Parking System |
| Frequency Band | 77~81Ghz |
| Waterproof Rating | IP66 Grade |
| Operating Temp | -40℃~85℃ |
| Sensor Range | 0.5~1.5m left/right; 1~6m distance |
| Response Time | 100ms |
| Dimensions / Weight | 107.9*73.6*17.2mm / 132.4g |
| Input Voltage | 10~24V DC |
| Power Consumption | <2.5W |
| Connection Port | RS485; Bluetooth App Calibration |
| Sales Unit | Single item |
| Package Dimensions | 17X10X10 cm |
| Gross Weight | 0.500 kg |
| Operating Frequency | 77~81Ghz |
| Unit Dimensions | 107.9*73.6*17.2mm |
| Waterproof Index | IP66 Grade |
| Net Weight | 132.4g |
| Environmental Temp | -40℃~85℃ |
| Input Voltage | 10~24V DC |
| Lateral Range | 0.5~1.5m |
| Effective Power | <2.5W |
| Straight Range | 1~6m |
| Interface Port | RS485 Port |
| Response Speed | 100ms Ultra-Fast |
| Parameter Calibration | Mobile Bluetooth Support |
| Component / Item Name | Quantity (Qty) |
| Baroxon Ba-AX3 Main Unit | 1 pcs |
| Mounting Bracket & Screws | 1 set |
| Connection Cable | 1 pcs |

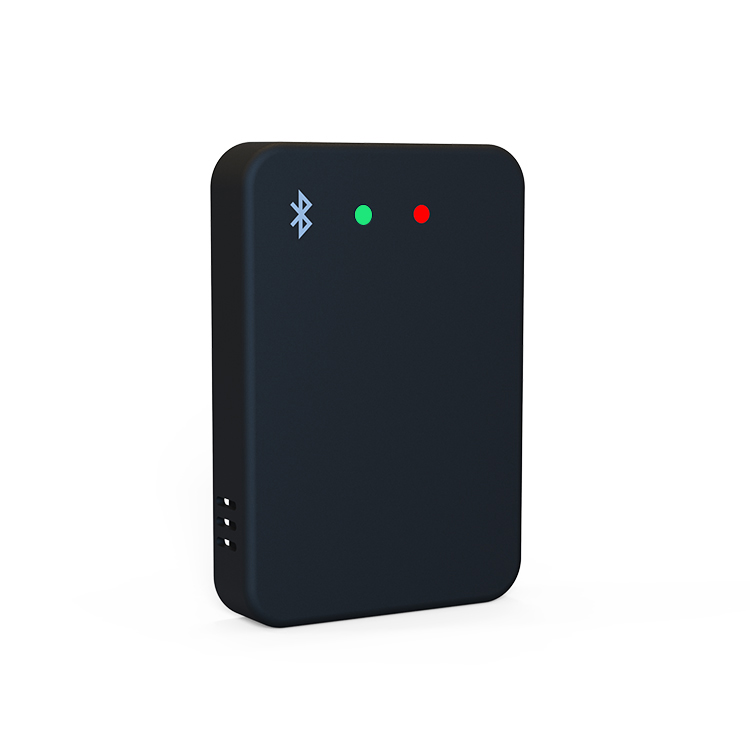

Product Images
Key Advantages
Millimeter-Wave Precision
The 79 GHz radar detects vehicles and obstacles with high accuracy and angular resolution at ranges up to 6 m.

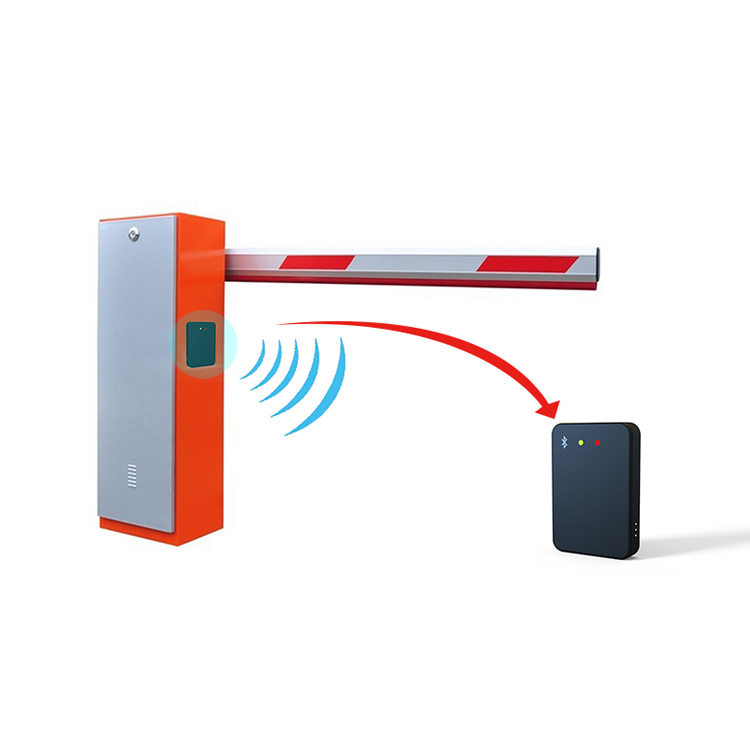

Induction Loop Replacement
No road cutting required: the sensor mounts above the lane and contactlessly detects vehicles, pedestrians and obstacles.
Boom Impact Protection
Real-time monitoring of the area under the arm prevents the barrier from lowering onto a vehicle or pedestrian.
All-Weather Sealed Housing
The sealed enclosure with IP65 protection (weather-resistant for the Singapore climate) works in rain, snow, fog, dust and temperature changes.

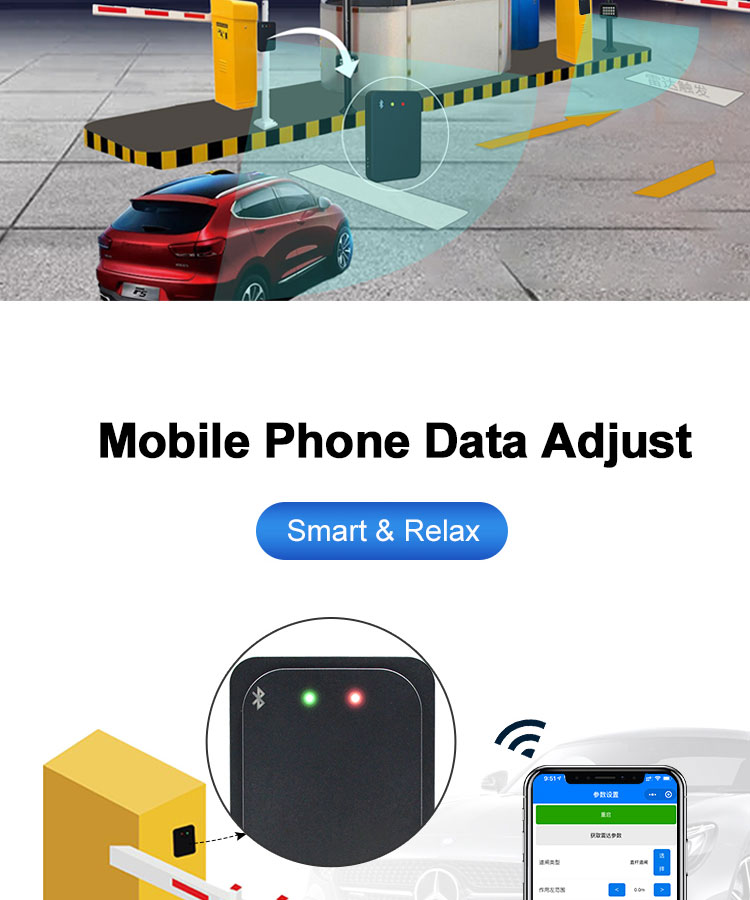

Wireless Configuration
Bluetooth app setup: detection zone, sensitivity and delay are configured without opening the housing.
Frequently Asked Questions (FAQs)
At what distance does the radar detect vehicles?
The 79 GHz millimeter-wave radar reliably detects vehicles at ranges up to 6 m with high angular resolution, fully covering the approach zone to the barrier.
Does the sensor replace induction loops?
Yes. The radar replaces loop detectors and infrared photocells: it detects vehicles, pedestrians and obstacles without cutting the road surface, simplifying installation and maintenance.
How does boom impact protection work?
The sensor monitors the area under the arm in real time: if a vehicle or pedestrian appears, the barrier stops lowering and raises the arm to prevent a collision.
Does the sensor work in rain, snow and frost?
Yes. The housing is rated IP65 (weather-resistant for the Singapore climate), and the millimeter-wave radar is unaffected by precipitation, fog, dust and temperature changes.
How is the sensor configured?
Configuration is done over Bluetooth from a smartphone app: detection zone, sensitivity and trigger delay are set without opening the housing.
Which barriers and gates is the sensor compatible with?
The sensor has standard relay outputs and works with BAROXON barriers as well as most universal barrier and gate operators.
Videos & Demonstrations
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
