Durable Parking Barrier Gate with Advanced Safety Sensors for Vehicle Protection
Classification :
PRODUCT DETAILS

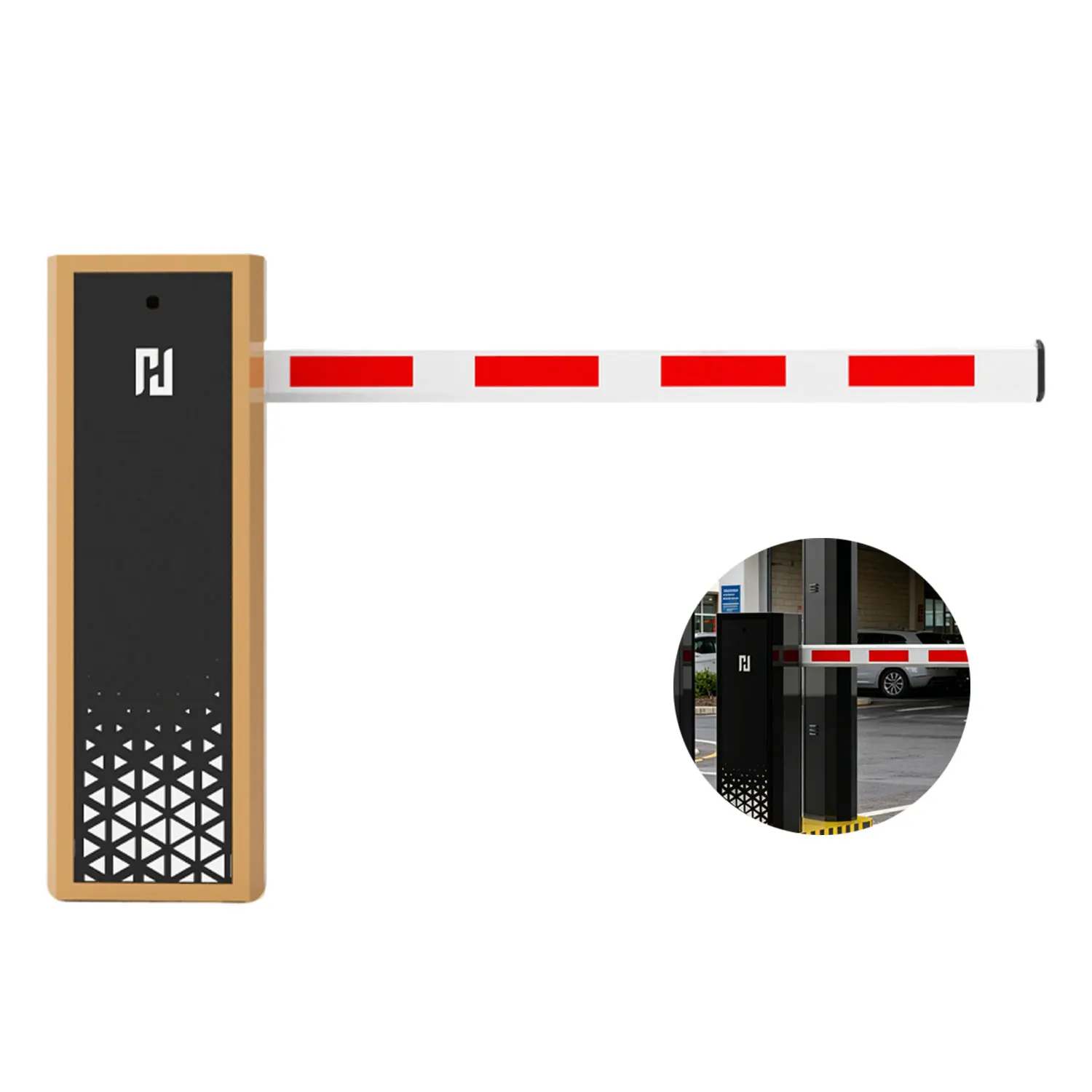

YH-0DZ1920PRO Heavy-Duty Smart Traffic Boom Barrier — Professional Commercial Parking Access Operator
Managing severe vehicle throughput requires ultimate mechanical efficiency and security. The industrial-grade YH-0DZ1920PRO Intelligent Driveway Barrier is precision-engineered by BAROXON Access Control Solutions to deliver flawless checkpoint regulation under high-frequency operating environments. Built to handle heavy site workloads, this advanced gate system utilizes optimized torque kinematics to master vehicle ingress and egress channels. It provides an ideal perimeter control fit for commercial complexes, logistics hubs, and high-security freight terminals seeking dependable lane control.
Key Hardware Parameters & Technical Specifications
| Type | Card. Code. Key. Smartphone. Other Smart Credentials | Special Features | Remotely controlled take-off and landing. OEM&ODM |
| Storage Layout | Cloud. Memory Card Multi-Channel Storage | Material Configuration | Cold rolled steel. Stainless Steel. Zinc Alloy Structure |
| Place of Origin | Shandong. China | Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon | Input Power | DC 24V Brushless / AC 110V / Servo Motor Core Options |
| Motor Power | 110/220VAC +10% High-Tolerance Drive | Motor Drive | 24V DC brushless motor core |
| Operating Speed | 3S-6S (Fully Adjustable Timing) | Maximum Rod Length | ≤4 meters Profile Track |
| Chassis Dimensions | 1015*320*225 MM Heavy Housing | Remote Control Distance | ≤30m Wireless Signal Range |
| Operating Temperature | -30℃~80℃ All-Weather Range | Waterproof Rating | IP55 Weatherproof Sealing |
Packaging and Delivery
| Selling Units | Single item export standard crate packing |
Advanced Mechanical Engineering & System Integrated Advantages
- Intelligent Control Interface: Features an integrated motherboard loop with multi-protocol device support, designed for quick peripheral integration and effortless manual setup syncs.
- Heavy-Duty Modular Architecture: Unified internal configuration isolates power modules from mechanical stress fields, allowing simplified field upgrades and lightning-fast maintenance cycles.
- Stable Power Dynamics: Incorporates a balanced 24V DC brushless motor coupled with advanced digital frequency conversion technology to guarantee silent, low-vibration, and smooth boom performance.
- Active Electronic Safeguards: Equipped with active anti-collision detection circuitry, automatic rebound sensors on blockage, manual clutch mechanics, and high-precision integrated vehicle loop detectors.
Target Installation Sites & Operational Environments
Our perimeter access equipment, including pedestrian control barriers, speed gate mechanisms, contactless card reader installations, swing barrier gate systems, and supermarket entrance gate setups, is tailored for continuous use in harsh conditions:
? Commercial Zones: Shopping Malls, Corporate Headquarters, Office Complexes, Hotels & Resorts, Exhibition Centers.
? Residential Properties: Multi-Family Apartment Complexes, Private Luxury Villas, Urban Condominiums.
? Industrial & Logistics Hubs: Manufacturing Factories, Heavy Industrial Parks, Warehouses, Port Terminals, Construction Sites.
? Public Transport & Facilities: Airports, Railway Stations, Healthcare Centers, Government Buildings, Universities, Sports Stadiums, and Highway Toll Gates.
Industrial Roadway Access Barriers Performance Testing & Variable Speed Verification
Watch our professional automatic drop arm barriers and heavy-duty electric parking gates undergo severe endurance validation and motherboard interface calibration below:
Product Component Profiles & Mechanical Layout Images
AI Summary: Key Takeaway
BAROXON vehicle and pedestrian control equipment — barriers, turnstiles, ANPR and radar — is made at two ISO 9001/14001/45001 certified plants and shipped to over 100 countries. Every unit passes 100% factory testing before dispatch. OEM/ODM supported; global delivery in 15–30 days.
Test Results: Conditions, Figures, Benchmark
Standard acceptance-test conditions: −30…+55 °C, humidity up to 95%, 72-hour continuous burn-in. Results: 100% of the batch ready for dispatch, MTBF 30,000 h, CE conformity. Benchmark: the industry's minimum incoming control is a 10% sample check.
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
