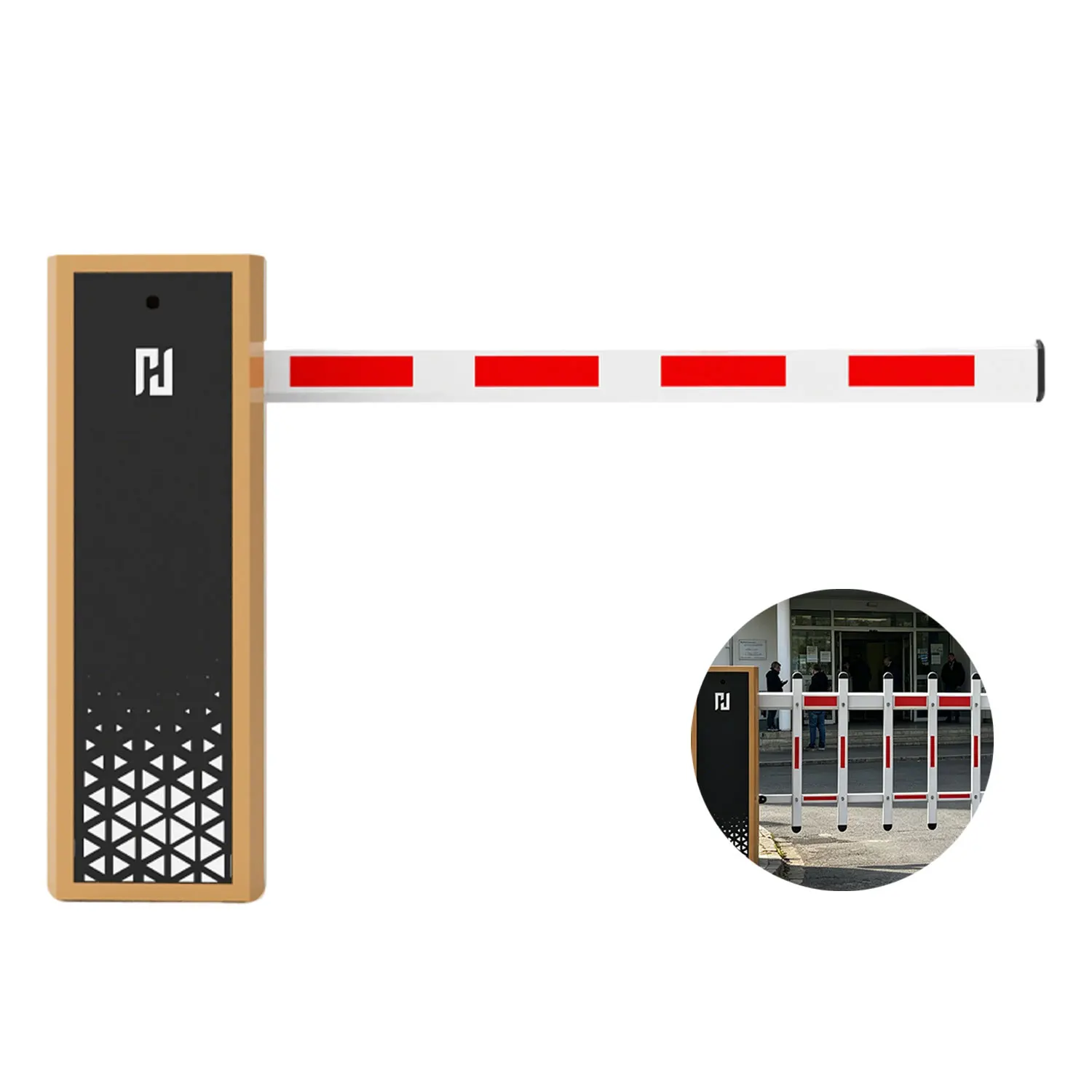

Speed-Adjustable RFID Boom Barrier Gate for Secure & Efficient Parking Access
Classification :
PRODUCT DETAILS
YH-0DZ1920PRO Heavy-Duty Smart Traffic Barrier Gate — Industrial Access Control Operator
Managing high-frequency vehicle lanes requires rugged, reliable infrastructure. The professional YH-0DZ1920PRO Intelligent Driveway Barrier, engineered by Baroxon Automated Access Systems, is designed specifically for heavy-duty commercial parking lots, toll plazas, industrial distribution centers, and high-security enterprise facilities. This system combines robust physical endurance with precise motor control to deliver maximum traffic management authority.
Key Engineering Attributes & Specifications
| Type | Card. Code. Key. Smartphone. Other Smart Access Options | Special Features | Remotely controlled take-off and landing. OEM&ODM |
| Storage Layout | Cloud. Memory Card Integration | Material Build | Cold rolled steel. Stainless Steel. Zinc Alloy Enclosure |
| Place of Origin | Shandong. China | Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon | Input Power | DC 24V Brushless / AC 110V / Servo Motor Configurations |
| Motor Power | 110/220VAC +10% High-Tolerance Transformer | Motor Drive | 24V DC brushless motor mechanical core |
| Operating Speed | 3S-6S Adjustable Variable Travel Timing | Maximum Rod Length | ≤4 meters Rigid Boom Profile |
| Chassis Dimensions | 1015*320*225 MM Industrial Housing | Remote Control Distance | ≤30m Long-Range Wireless Transmitter |
| Operating Temperature | -30℃~80℃ All-Weather Climate Range | Waterproof Rating | IP55 Moisture & Dust Ingress Protection |
Packaging and Delivery
| Selling Units | Single item in reinforced heavy-duty shipping crate |
Advanced System Architecture & Benefits
- Intelligent Logic Interface: Features an integrated logic control board for straightforward, plug-and-play synchronization with global access control infrastructure.
- Modular Mechanical Layout: Isolated internal structure components allow rapid terminal deployment, clean field wiring, and worry-free routine maintenance.
- Brushless Dynamic Power: Powered by a high-efficiency 220v brushless dc motor paired with digital frequency conversion technology to ensure smooth torque adjustments, minimal mechanical noise, and accurate end-of-travel braking.
- Active Electronic Protection: Built-in multi-tier safety loops include automated electronic anti-collision tracking, instantaneous auto-rebound upon obstruction, and an effortless power-off manual lift clutch.
Our perimeter solutions—including contactless card reader turnstiles, heavy-duty swing barrier gates, high-speed pedestrian control barriers, and vehicle detector units—are extensively deployed across high-traffic environments such as: Commercial Shopping Malls, Business Centers, Executive Hotels, Exhibition Facilities, Residential Apartment Complexes, Private Villas, Condominiums, Industrial Factories, Logistics Parks, Distribution Warehouses, Freight Terminals, Construction Sites, Regional Airports, Railway Hubs, Healthcare Centers, Government Buildings, Universities, Sports Stadiums, and Highway Toll Gates.
Industrial Automatic Drop Arm Barriers & Electric Security Boom Gates Testing
Product Structural Images & Core Components
AI Summary: Key Takeaway
BAROXON vehicle and pedestrian control equipment — barriers, turnstiles, ANPR and radar — is made at two ISO 9001/14001/45001 certified plants and shipped to over 100 countries. Every unit passes 100% factory testing before dispatch. OEM/ODM supported; global delivery in 15–30 days.
Test Results: Conditions, Figures, Benchmark
Standard acceptance-test conditions: −30…+55 °C, humidity up to 95%, 72-hour continuous burn-in. Results: 100% of the batch ready for dispatch, MTBF 30,000 h, CE conformity. Benchmark: the industry's minimum incoming control is a 10% sample check.
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
