High-Speed RFID Optical Speedlane Turnstile Gate for Corporate Lobbies – Premium Entrance Control and Access Management System
Classification :
PRODUCT DETAILS
Elevate corporate lobbies and secure commercial facilities with our high-speed RFID optical speedlane turnstile gate. Featuring advanced RFID card reading and high-precision optical sensors, it combines rapid-response glass panels, anti-tailgating technology, and high-frequency durability, delivering seamless pedestrian flow and maximum protection worldwide.
Specifications
| Barrier open/close time | 0.2 s |
| Barrier Motor | Brushless Motor (High Performance) |
| Access Control Type | ESD System. Face Recognition. Fingerprint. IC Card. QR Code. RFID Card |
| Turnstile Function | Collision Avoidance. Counting Function. Anti-Tailgating. Anti-Pinch |
| Operation Direction | 2-Way (Bi-directional) |
| Communication Interface | RS485. TCP/IP |
| Brand Name | Baroxon |
| Model Number | Ba-Y002 Auto Swing Gate Turnstile Door |
| Material | 304 stainless steel on case (Anti-Rust) |
| Product Name | Auto Swing Turnstile Door |
| Application | Office. School. Park. Airport. Subway (Corporate Buildings & Public Areas) |
| Channel Width | ≤ 600 mm |
| Product Name | Baroxon Auto Swing Barrier Turnstile |
| Model Number | Ba-Y002 |
| Dimensions | 1200 * 280 * 990 (mm) |
| Arm Length (Access Width) | 600 mm (Normal size) |
| Casing Thickness | 1.5 mm on top. 1.2 mm on body |
| Power Supply | AC 198V ~ 248V 50Hz±4 %. output: AC24V. DC 12V |
| Flap Opening/Closing Time | 0.7 s |
| Operating Temperature | -25 ~ +70℃ |
| Traffic Speed (Throughput) | 35-35 person/minute |
| Life Span Expectancy | 10 years (Non-consumables) |

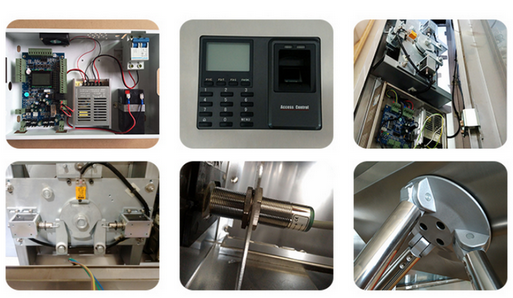

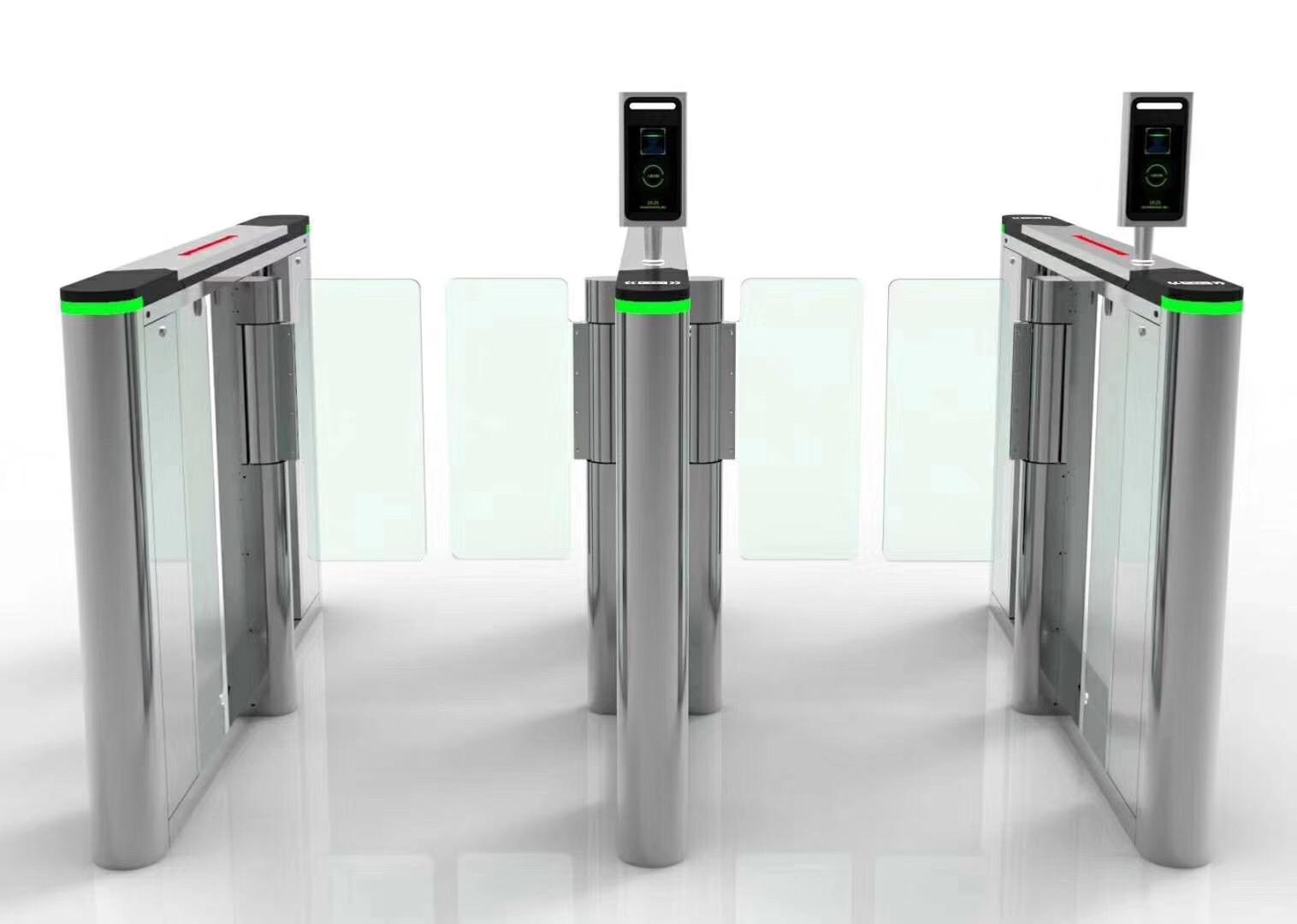

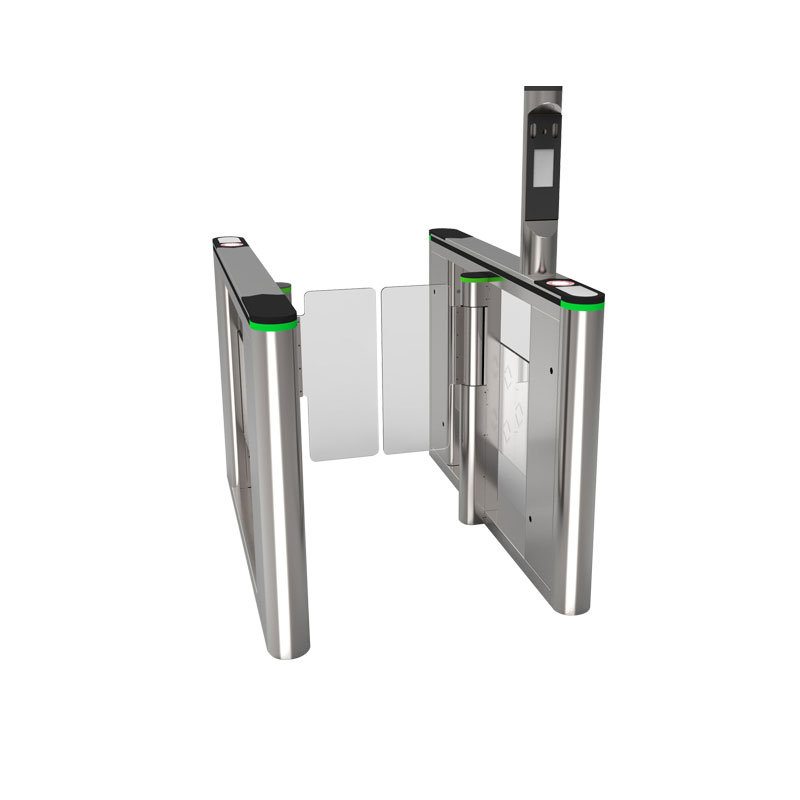

Product Images
Key Advantages
Multiple Credential Options
RFID cards and key fobs, PIN, QR, fingerprint and face recognition — configure the right combination for each entrance.
High Throughput
From 30 people per minute on tripods to 60 on optical speed gates — no queues even during peak hours.
Anti-Tailgating Control
Optical sensors and mechanical blocking prevent unauthorized passage behind an authorized user.
Premium Stainless Steel 304
Durable brushed stainless steel housing with a modern design that fits any interior.
Integration with Existing Systems
Wiegand, RS485 and TCP/IP interfaces connect the equipment to most СКУД platforms, attendance and visitor systems.
Frequently Asked Questions (FAQs)
Which credentials does the system support?
RFID cards and key fobs, PIN codes, QR tickets, biometric fingerprint and face recognition — a combination can be configured for each entrance.
What is the throughput of the turnstiles?
Tripod turnstiles pass up to 30 people per minute, swing barriers up to 40, and optical speed gates up to 60 — enough for offices and public facilities during peak hours.
How is anti-tailgating protection implemented?
Swing barriers and speed gates use optical sensors that detect attempts to pass without authorization; in tripod turnstiles, the mechanism physically blocks passage.
Can the equipment be installed outdoors?
Yes, models with protection class {ip} are designed for outdoor installation — entrances of stadiums, transport facilities and residential territories.
Does the system integrate with an existing access control system?
Yes. The equipment supports Wiegand, RS485 and TCP/IP and connects to most СКУД platforms, attendance systems and visitor management software.
What warranty and service are provided?
Standard warranty is 12 months; online technical support, spare parts supply and remote diagnostics are available for the entire service life.
Videos & Demonstrations
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
