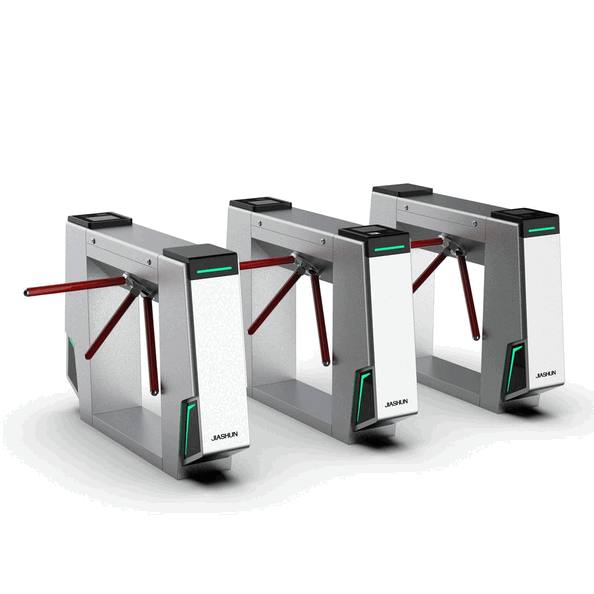

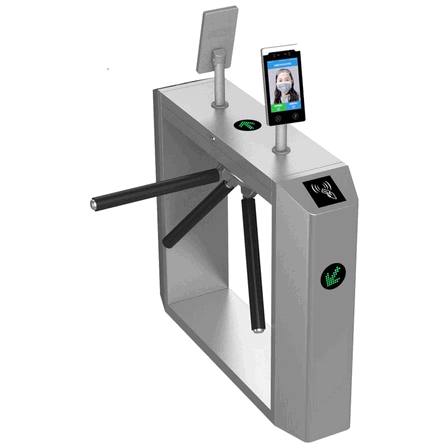

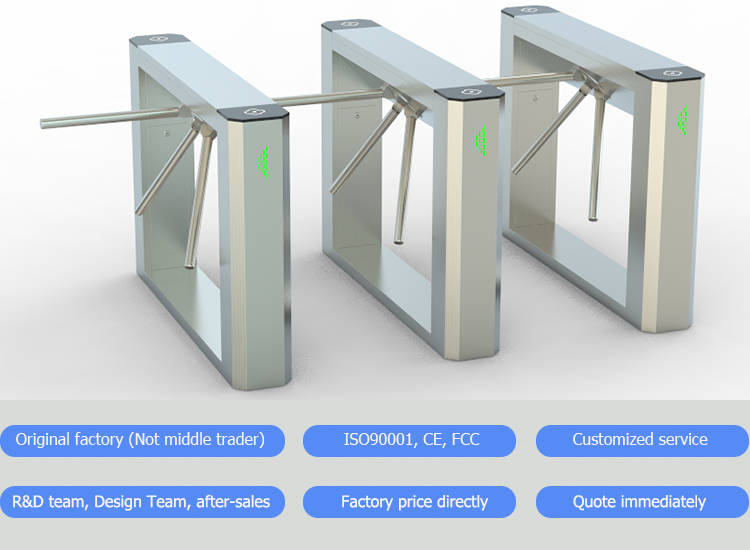

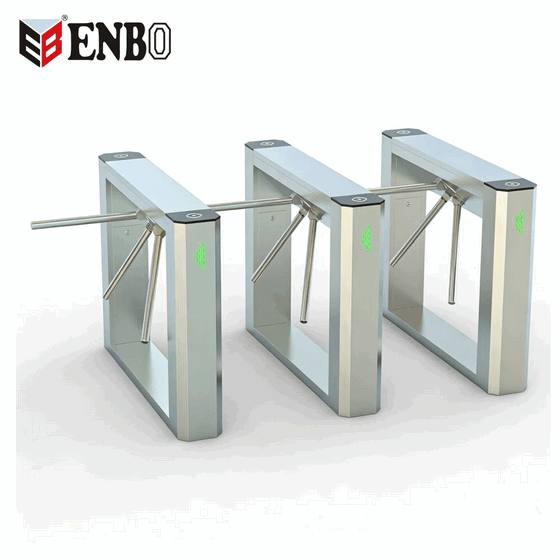

IP68 Waterproof Heavy-Duty Automatic Tripod Turnstile Gate with NFC and QR Code Access – Extreme Outdoor Pedestrian Security Barrier Solution
Classification :
PRODUCT DETAILS
Protect extreme outdoor environments and regulate pedestrian traffic with our IP68 waterproof heavy-duty automatic tripod turnstile gate. Featuring NFC smartphone entry, QR code scanning, and rugged weather-sealed construction, it combines rapid-response rotating arms, high-frequency durability, and precision crowd management, delivering reliable outdoor security worldwide.
Specifications
| Protection Level | IP68 (Waterproof & Dustproof) |
| Barrier Open/Close Time | 0.2 s |
| Barrier Motor | Brushed Motor |
| Access Control Type | RFID Card. QR Code. IC Card. ESD System (Anti-Static) |
| Turnstile Function | Anti-Pinch. Collision Avoidance. Anti-Tailgating. Counting Function |
| Operation Direction | 2-Way (Bi-directional) |
| Communication Interface | TCP/IP (Network Integration) |
| Material | SUS304 Stainless Steel |
| Brand Name | Baroxon |
| Model Number | Ba-G107 |
| Dimensions | 1200*280*980mm |
| Power Supply | AC 220 ± 10% V. 50 Hz |
| Drive Motor | DC Motor 24V/100W |
| Operating Temperature | -15°C to 60°C |
| Relative Humidity | ≤ 90%. non-condensing |
| Case Color | Metallic silver/customizable |
| Gate Arm Length | 510(mm) |
| Max Load Capacity | 80Kg |
| Casing Material | 304 Grade Stainless Steel (Anti-Corrosion) |
| Surface Treatment | Brushed Finish (Elegant Aesthetic) |
| Lane Width | 600mm |
| Pass Speed | 45--50 persons/minute |
| Open/Close Speed | 0.5sec |
| Rotation Angle | 120 degrees |
| MCBF (Service Life) | 10,000,000 cycles |
| Weight | 30kg |
| Power Supply | 220V/AC. 50/60HZ |
| Rated Power | 60W |
| Input Signal | Dry Contact |
| Drive Motor | Solenoid / DC Motor |

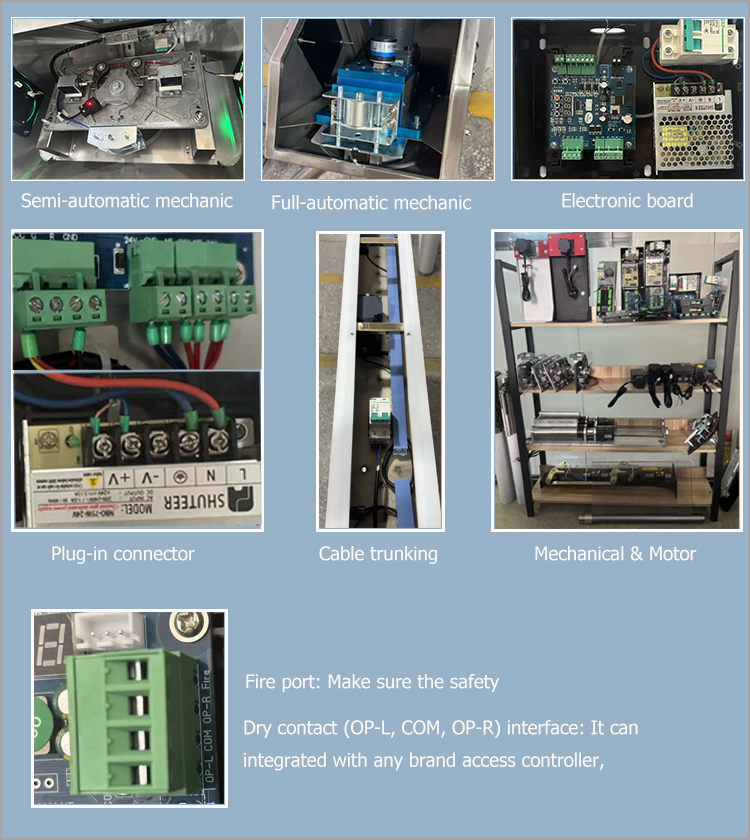

Product Images
Key Advantages
Multiple Credential Options
RFID cards and key fobs, PIN, QR, fingerprint and face recognition — configure the right combination for each entrance.
High Throughput
From 30 people per minute on tripods to 60 on optical speed gates — no queues even during peak hours.
Anti-Tailgating Control
Optical sensors and mechanical blocking prevent unauthorized passage behind an authorized user.
Premium Stainless Steel 304
Durable brushed stainless steel housing with a modern design that fits any interior.
Integration with Existing Systems
Wiegand, RS485 and TCP/IP interfaces connect the equipment to most СКУД platforms, attendance and visitor systems.
Frequently Asked Questions (FAQs)
Which credentials does the system support?
RFID cards and key fobs, PIN codes, QR tickets, biometric fingerprint and face recognition — a combination can be configured for each entrance.
What is the throughput of the turnstiles?
Tripod turnstiles pass up to 30 people per minute, swing barriers up to 40, and optical speed gates up to 60 — enough for offices and public facilities during peak hours.
How is anti-tailgating protection implemented?
Swing barriers and speed gates use optical sensors that detect attempts to pass without authorization; in tripod turnstiles, the mechanism physically blocks passage.

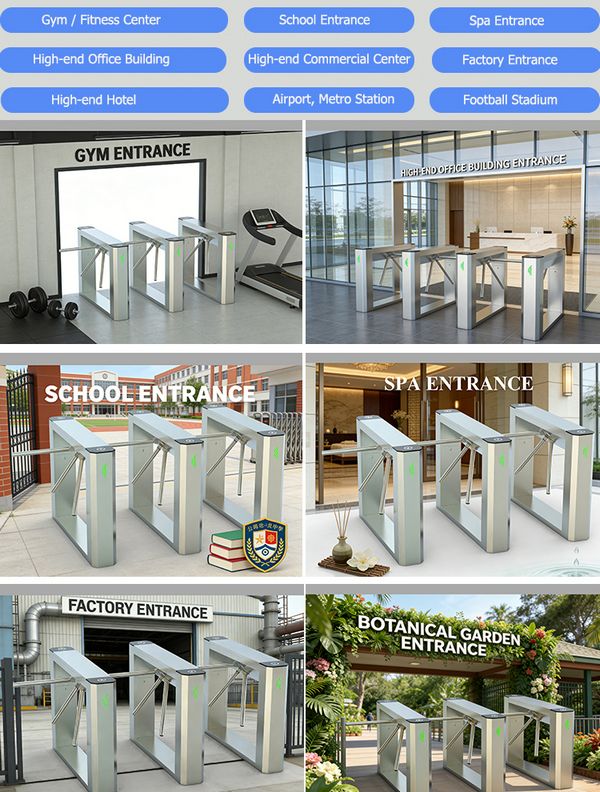

Can the equipment be installed outdoors?
Yes, models with protection class {ip} are designed for outdoor installation — entrances of stadiums, transport facilities and residential territories.
Does the system integrate with an existing access control system?
Yes. The equipment supports Wiegand, RS485 and TCP/IP and connects to most СКУД platforms, attendance systems and visitor management software.
What warranty and service are provided?
Standard warranty is 12 months; online technical support, spare parts supply and remote diagnostics are available for the entire service life.
Videos & Demonstrations
FAQ
What is the delivery time?
Standard production and shipping time is 15 to 30 days depending on model and order volume.
Is there a warranty?
Yes, all products carry a factory warranty, plus technical support and after-sales service.
Can I order OEM/ODM?
Yes, we manufacture to your requirements: color, logo, boom arm length, configuration and integration.
How do I get a quote?
Submit the form, message us on WhatsApp or e-mail and we will respond within one working hour.
