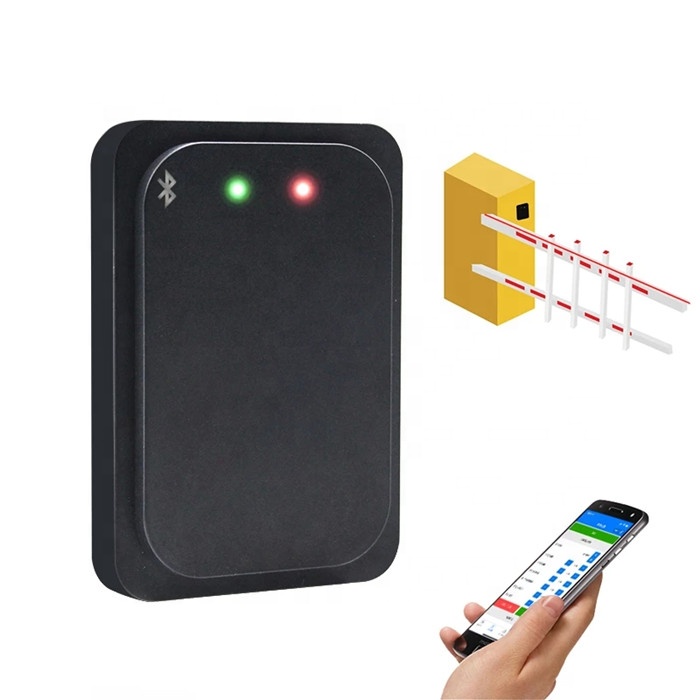

Wireless Bluetooth Vehicle Detection Radar Sensor for Straight Boom Barriers – Anti-Collision Safety System for Motorcycles and Vehicles
Classification :
PRODUCT DETAILS
Protect motorcycles and vehicles and prevent boom strikes with our wireless Bluetooth vehicle detection radar sensor. Designed for straight boom barriers, it combines wireless configuration, high-precision microwave detection, and rapid anti-smash response, delivering reliable traffic management and maximum safety worldwide.
Specifications
| Official Brand Name | Baroxon |
| Country of Origin | Shandong, China |
| Product Name | Ba-Radar Anti-smashing Radar Sensor |
| Primary Application | Car Parking System Boom Barrier |
| Scanning Range | Vertical 1~6m, horizonal +/-1.5m |
| Input Voltage | DC10~16V |
| Waterproof Rating | IP67 Weatherproof |
| Operating Temp | -40℃ ~+85℃ |
| Radar Frequency | 77GHZ~81GHZ |
| Antenna Gain | 10dbi |
| Transmit Power | 12.5dbm |
| Longitudinal Range | 1-6m configurable (Default 3m) |
| Sales Unit | Single item (Project Unit) |
| Package Size | 12X8X12 cm |
| Gross Package Weight | 1.000 kg |
| Supply Location | Ready Stock for Regional Projects |
| Feature / Attribute | Specification Value |
| Model Name | Wireless BT Radar Vehicle Detector Ba-Pro |
| Voltage Range | DC9V-36V (Standard 12V) |
| Vehicle Detection Accuracy | ＞99.99% |
| Pedestrian Detection Accuracy | ＞99% |
| Horizontal Beam Angle | 120° Wide Angle |
| Response Speed | 100ms Ultra Fast |
| Output Signal Type | Switching Quantity (Relay) |
| Power Consumption | 1.6W~1.8W Energy Saving |
| Scanning Area Range | 0.3~6m (Adjustable via Bluetooth App) |
| Reliability Standard (MTBF) | ＞18,000 hours |

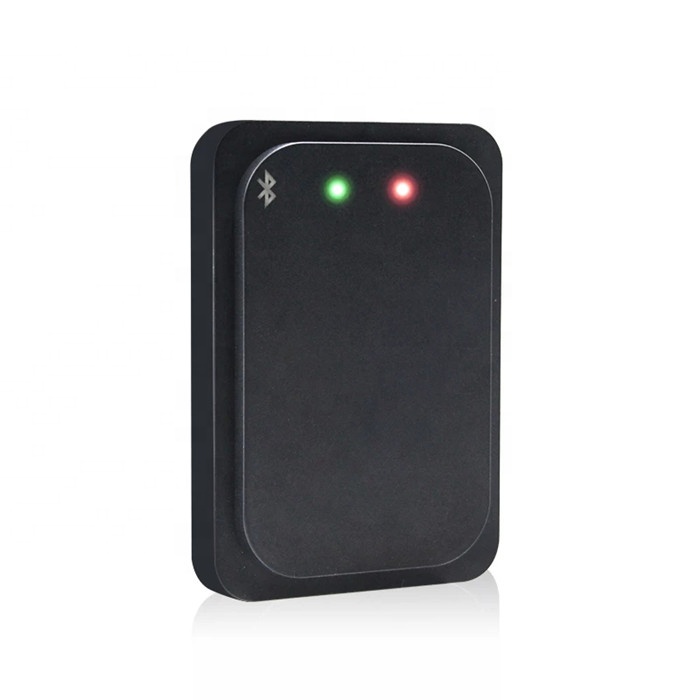

Product Images
Key Advantages
Millimeter-Wave Precision
The 79 GHz radar detects vehicles and obstacles with high accuracy and angular resolution at ranges up to 6 m.

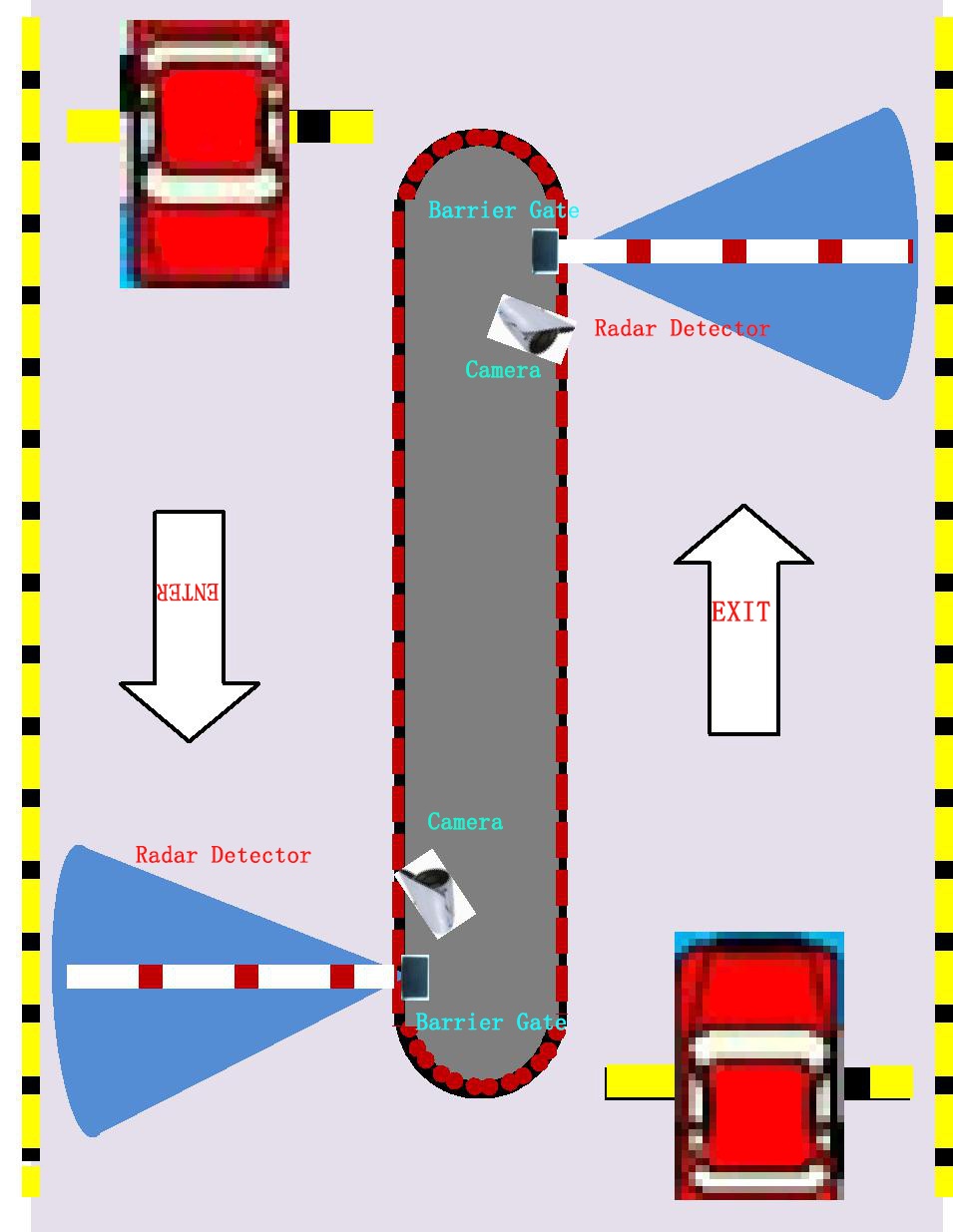

Induction Loop Replacement
No road cutting required: the sensor mounts above the lane and contactlessly detects vehicles, pedestrians and obstacles.
Boom Impact Protection
Real-time monitoring of the area under the arm prevents the barrier from lowering onto a vehicle or pedestrian.
All-Weather Sealed Housing
The sealed enclosure with IP65 protection (weather-resistant for the Singapore climate) works in rain, snow, fog, dust and temperature changes.
Wireless Configuration
Bluetooth app setup: detection zone, sensitivity and delay are configured without opening the housing.
Frequently Asked Questions (FAQs)
At what distance does the radar detect vehicles?
The 79 GHz millimeter-wave radar reliably detects vehicles at ranges up to 6 m with high angular resolution, fully covering the approach zone to the barrier.
Does the sensor replace induction loops?
Yes. The radar replaces loop detectors and infrared photocells: it detects vehicles, pedestrians and obstacles without cutting the road surface, simplifying installation and maintenance.
How does boom impact protection work?
The sensor monitors the area under the arm in real time: if a vehicle or pedestrian appears, the barrier stops lowering and raises the arm to prevent a collision.
Does the sensor work in rain, snow and frost?
Yes. The housing is rated IP65 (weather-resistant for the Singapore climate), and the millimeter-wave radar is unaffected by precipitation, fog, dust and temperature changes.

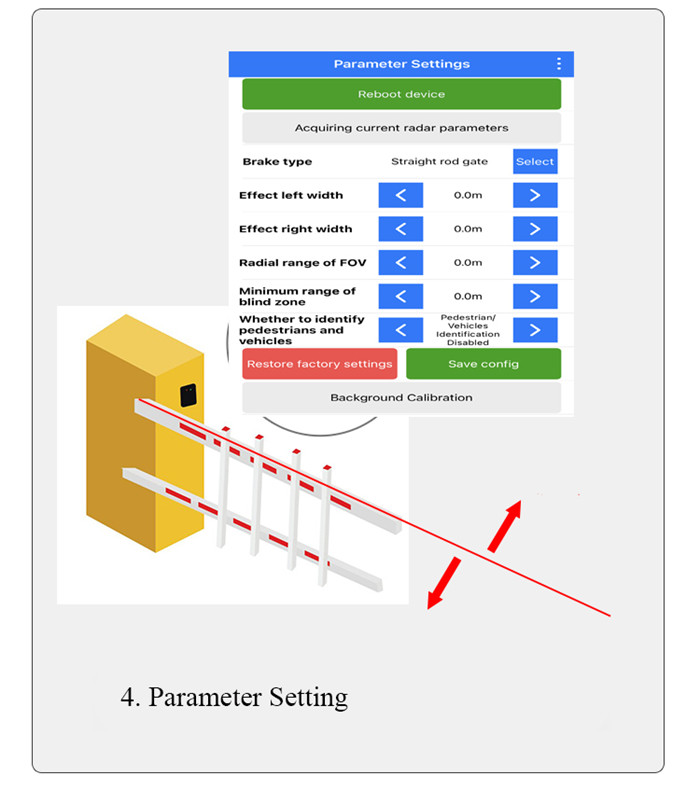

How is the sensor configured?
Configuration is done over Bluetooth from a smartphone app: detection zone, sensitivity and trigger delay are set without opening the housing.
Which barriers and gates is the sensor compatible with?
The sensor has standard relay outputs and works with BAROXON barriers as well as most universal barrier and gate operators.
